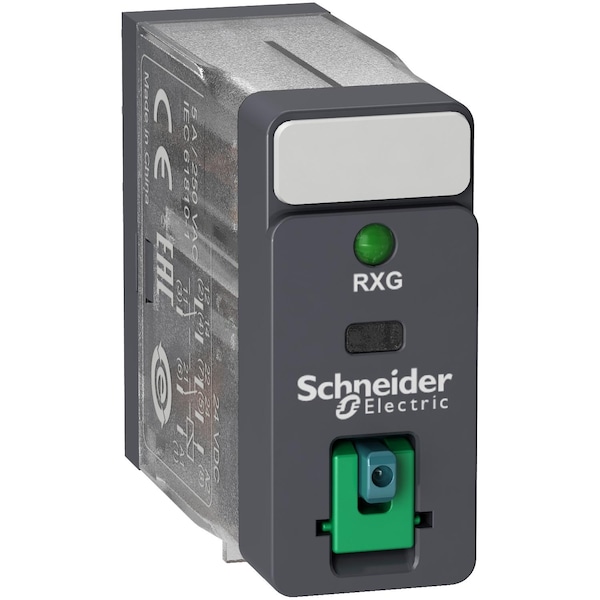

Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 12V DC

Mfr # RXG22JD
Zoro # G1982934

Sold in multiples of 10 for $85.90

Key Features

Coil Voltage

12V DC

Current Rating

Contact Rating (AC)

5 A @ 250V

Contact Rating (DC)

5 A @ 30V

Contact Material

Silver Alloy (AgSnO2In2O3)

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: RXG22JD
Zoro #: G1982934
UPC #: -
Country of Origin: China

Details

Item: Relay,2CO 5A@250VAC,12VDC,Coil Led+ltb
Coil Voltage: 12V DC
Current Rating: 5A
Contact Rating (AC): 5 A @ 250V
Contact Rating (DC): 5 A @ 30V
Contact Material: Silver Alloy (AgSnO2In2O3)
Standards: CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
Features: Lockable Test Button; Insulation Class F; Flag Local Signalling; With Status LED
Switching Voltage: 250 V AC || 30 V DC
Dielectric Voltage: 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
Protection Category: RT I
Operating Temp. Range: -40-70°C
Coil Resistance: 270 Ohm +/- 10 %
Torque Value: 0.8 N.m
Minimum Switching Capacity: 50 mW at 10 mA, 5 V DC
Ip Degree of Protection: IP40
Vibration Resistance: 3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Insulation Resistance: 1000 MOhm at 500 V DC
Electrical Durability: 100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
Overvoltage Category: III
Device Short Name: RXG
Drop-Out Voltage Threshold: >= 0.1 Uc DC
Test Levels: level A group mounting
Operating Rate: <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Mechanical Durability: 10000000 cycles
Pollution Degree: 2
Shock Resistance: 20 gn in operation, 100 gn not in operation
Colour of Cover: standard
Device Presentation: complete product
[Ui] Rated Insulation Voltage: 250 V IEC, 300 V CSA, 300 V UL
[Ithe] Conventional Enclosed Thermal Current: 5 A -40-55°C
Control Type: lockable test button
Relative Humidity: 10-85 %
Load Current: 5 A 250 V AC
Ambient Air Temperature For Operation: -40-70°C
Ambient Air Temperature For Storage: -40-85°C
Utilisation Coefficient: 0.2
Series Name: interface relay
Maximum Switching Capacity: 1250 VA
Status Indicator: LED Indicator
Electrical Connection: Plug In
Base Shape: Square
Number of Pins: 8
Contact Form: DPDT

Description

Relay,2CO 5A@250VAC,12VDC,Coil Led+ltb
