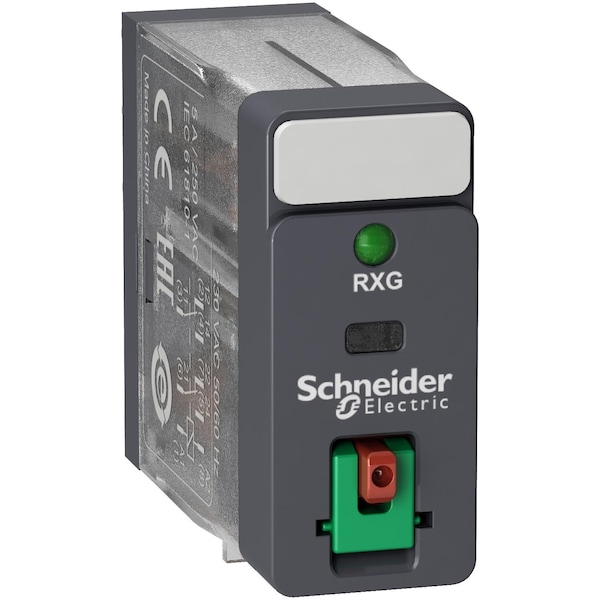

Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 230V AC

Plug-In Relay

Pin

230V AC

5 A

5 A @ 250V AC

5 A @ 30V DC

CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL

Silver Alloy (AgSnO2In2O3)

0.82VA

Lockable Test Button; Insulation Class F; Flag Local Signalling; With Status LED

23500 Ohm +/- 15 %

RT I

1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation

250 V AC || 30 V DC

-40-70°C

100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C

0.8 N.m

20 gn in operation, 100 gn not in operation

50 mW at 10 mA, 5 V DC

5 A -40-55°C

<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load

III

lockable test button

1000 MOhm at 500 V DC

IP40

0.8...1.1 Uc AC

-40-85°C

10-85 %

2

-40-70°C

5 A 250 V AC

3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation

standard

10000000 cycles

0.2

complete product

RXG

interface relay

250 V IEC, 300 V CSA, 300 V UL

>= 0.3 Uc AC

1250 VA

level A group mounting

0.82 VA 60 Hz

LED Indicator
