  15. Joystick Operator, 22mm, 2 Dir, Maintained

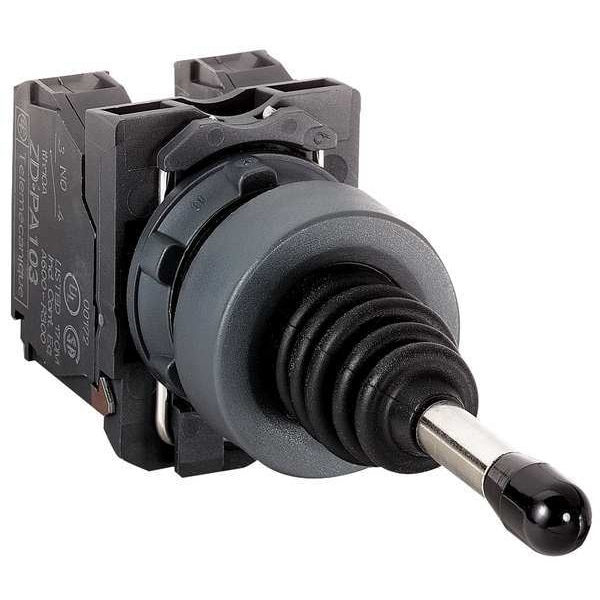

Schneider Electric Joystick Operator, 22mm, 2 Dir, Maintained XD5PA12 - main

Joystick Operator, 22mm, 2 Dir, Maintained

  • Mfr # XD5PA12

  • Zoro # G1605432

product price: $256.99
/ea
Free Shipping & Returns

Key Features

Size
22 mm
Number of Directions
2
Contact Form
1NO
Contact Rating
10A @ 600V AC
Joystick Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XD5PA12
Zoro #
G1605432
UPC #
785901384793
Country of Origin
France

Dimensions

Size
22 mm
Width
30 mm
Mounting Diameter
22 mm
Depth
108 mm
Height
47 mm
Manufacturer Warranty Length
18 mo
Overall Depth
4.25 in
Shaft Length
2.13 in
Panel Cutout Diameter
22 mm
Overall Height
1.85 in
Overall Width
1.18 in

Details

Item
Joystick Operator
Number of Directions
2
Contact Form
1NO
Contact Rating
10A @ 600V AC
Joystick Material
Plastic
Action
Maintained
NEMA Rating
13, 4X
Latching / Non-Latching
Non-Latching
Direction of Operation
Vertical
NEMA Contact Rating Designation
R300
Standards
China RoHS, EU RoHS, REACH, WEEE
Bezel
Plastic
IP Rating
IP66
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Operation
-25-70°C
[Ie] Rated Operational Current
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Protective Treatment
TH
Ik Degree Of Protection
IK03 IEC 50102
Product Certifications
DNV || BV || CSA || UL Listed || GL || LROS (Lloyds register of shipping)
Contacts Type And Composition
1 NO
Device Presentation
complete product
Contacts Material
silver alloy (Ag/Ni)
Mechanical Durability
1000000 cycles
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Position Information
3 positions
Contact Operation
slow-break
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Operator Profile
54 mm long operating shaft
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
round
Ip Degree Of Protection
IP66 IEC 60529
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Contacts Usage
standard
Notch Per Direction
1-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Storage
-40-70°C
Electrical Shock Protection Class
class II IEC 60536
Bezel Material
Plastic
Product Or Component Type
joystick controller
Operator Direction Information
2 directions
Device Short Name
XD5
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Type Of Operator
stay put
Fixing Collar Material
plastic
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Positive Opening
without
Rated Operational Current
0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Rated Insulation Voltage
600 V 3)IEC 60947-1
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Number of Positions
2
Series
XB5
NEMA Enclosure Rating
13, 4X
Switch Action
Maintained
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Latch Type
Non-Latching

Description

Joystick Operator, 22 mm, Number of Directions 2, 1NO Contact Form, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation R300, Joystick Material Plastic, Bezel Plastic, Non-Latching, Vertical Direction of Operation, Action Maintained, NEMA Rating 13, 4X, IP Rating IP66, Standards China RoHS, EU RoHS, REACH, WEEE
