  15. Joystick Operator, 22mm, 4 Dir, Maintained

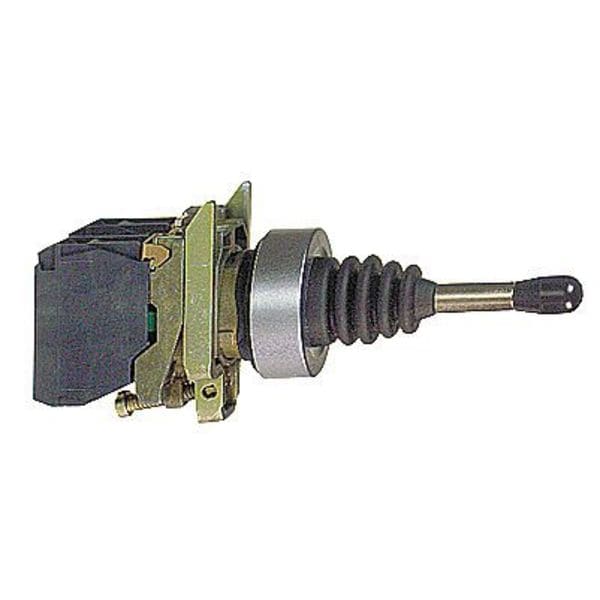

Schneider Electric Joystick Operator, 22mm, 4 Dir, Maintained XD4PA14 - main

Joystick Operator, 22mm, 4 Dir, Maintained

  • Mfr # XD4PA14

  • Zoro # G2733701

product price: $268.99
/ea
Free Shipping & Returns

Key Features

Size
22 mm
Number of Directions
4
Contact Form
1NO
Contact Rating
10A @ 600V AC
Joystick Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XD4PA14
Zoro #
G2733701
UPC #
785901376453
Country of Origin
France

Dimensions

Size
22 mm
Mounting Diameter
22 mm
Panel Cutout Diameter
22 mm
Overall Depth
5.24 in
Manufacturer Warranty Length
18 mo
Shaft Length
2.13 in
Overall Width
1.18 in

Details

Item
Joystick Operator
Number of Directions
4
Contact Form
1NO
Contact Rating
10A @ 600V AC
Joystick Material
Metal
Action
Maintained
NEMA Rating
13, 4X
Latching / Non-Latching
Latching
Direction of Operation
Vertical and Horizontal
IP Rating
IP66
Bezel
Chromium Plated Metal
Standards
China RoHS, EU RoHS, REACH, WEEE
NEMA Contact Rating Designation
R300
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Bezel Material
Metal
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
[Ie] Rated Operational Current
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Direction Information
4 directions
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Head
round
Mechanical Durability
1000000 cycles
Ip Degree Of Protection
IP66 IEC 60529
Contacts Usage
standard
Electrical Shock Protection Class
class I IEC 60536
Ambient Air Temperature For Operation
-25-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Positive Opening
without
Product Certifications
LROS (Lloyds register of shipping) || CSA || UL Listed || BV || DNV || GL
Contact Operation
slow-break
Notch Per Direction
1-1
Protective Treatment
TH
Contacts Type And Composition
1 NO
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Type Of Operator
stay put, long operating shaft 54 mm
Product Or Component Type
joystick controller
Contacts Material
silver alloy (Ag/Ni)
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Tightening Torque
0.8-1.2 N.m EN 60947-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
XD4
Device Presentation
complete product
Operator Position Information
5 positions
Fixing Collar Material
zamak
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Ik Degree Of Protection
IK03 IEC 50102
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Number of Positions
4
NEMA Enclosure Rating
13, 4X
Switch Action
Maintained
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Series
XB4
Latch Type
Latching

Description

Joystick Operator, 22 mm, Number of Directions 4, 1NO Contact Form, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation R300, Joystick Material Metal, Bezel Chromium Plated Metal, Latching, Vertical and Horizontal Direction of Operation, Action Maintained, NEMA Rating 13, 4X, IP Rating IP66, Standards China RoHS, EU RoHS, REACH, WEEE
