  13. Joystick Operator, 30mm, 2 Dir, Maintained
Shop All Joystick Operators
Schneider Electric

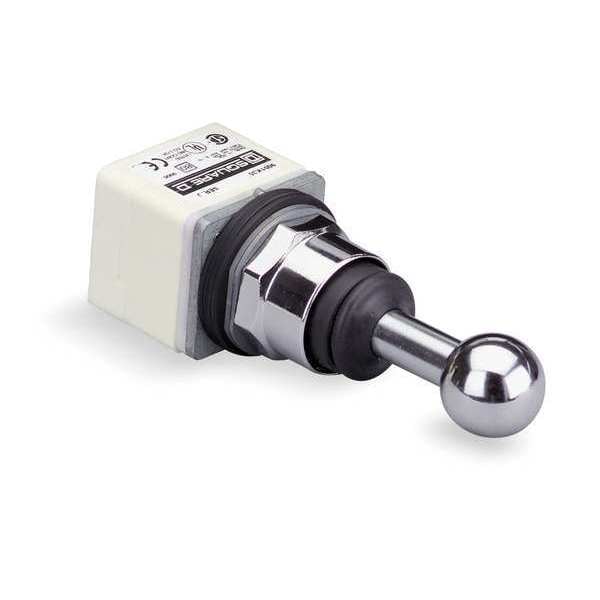

Joystick Operator, 30mm, 2 Dir, Maintained

product price: $225.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 30 mm
  • Number of Directions 2
  • Contact Form Not Included
  • Contact Rating 10A @ 600V AC
  • Joystick Material Metal
See all product information

Product Information

Dimensions

Size 30 mm
Mounting Diameter 30 mm
Shaft Length 3.15 in
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 30 mm

Details

Item Joystick
Number of Directions 2
Contact Form Not Included
Contact Rating 10A @ 600V AC
Joystick Material Metal
Action Maintained
NEMA Rating 13, 4
Latching / Non-Latching Non-Latching
Direction of Operation Vertical
Bezel Metal
IP Rating IP66
Standards China RoHS, EU RoHS, REACH, WEEE
Ambient Air Temperature For Operation -25-70°C
Device Presentation basic element
Shape Of Signaling Unit Head octagonal
Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Product Or Component Type head for joystick controller
Operator Profile 80 mm long operating shaft
Overvoltage Category II IEC 61140
Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6
Device Short Name 9001K
Ambient Air Temperature For Storage -40-70°C
Operating Position any position
Contacts Type And Composition without contact block
Bezel Material Metal
Shock Resistance 50 gn IEC 60068-2-27
Product Certifications NEMA || UL 508
Type Of Operator stay put
Ip Degree Of Protection IP66 IEC 60529
Protective Treatment TC
Operator Direction Information 2 directions
Series 9001K
Switch Action Maintained
Number of Positions 2
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4
Latch Type Non-Latching

Description

Joystick, 30 mm, Number of Directions 2, Not Included Contact Form, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation Not Applicable, Joystick Material Metal, Bezel Metal, Non-Latching, Vertical Direction of Operation, Action Maintained, NEMA Rating 13, 4, IP Rating IP66, Standards China RoHS, EU RoHS, REACH, WEEE
