  15. Joystick Operator, 30mm, 4 Dir, Momentary

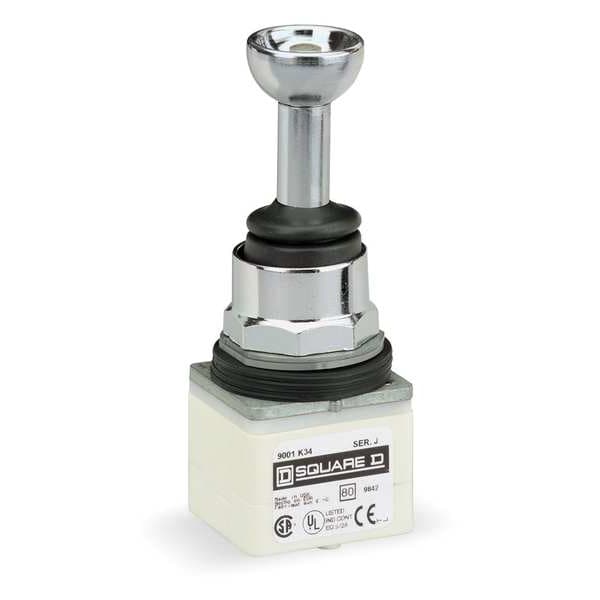

Schneider Electric Joystick Operator, 30mm, 4 Dir, Momentary 9001K34 - main

Joystick Operator, 30mm, 4 Dir, Momentary

  • Mfr # 9001K34

  • Zoro # G3308304

product price: $296.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Number of Directions
4
Contact Form
Not Included
Contact Rating
Not Included
Joystick Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K34
Zoro #
G3308304
UPC #
785901077138
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Shaft Length
3.15 in
Manufacturer Warranty Length
18 mo

Details

Item
Joystick
Number of Directions
4
Contact Form
Not Included
Contact Rating
Not Included
Joystick Material
Metal
Action
Momentary
NEMA Rating
13, 4
Latching / Non-Latching
Latching
Direction of Operation
Vertical and Horizontal
Bezel
Metal
IP Rating
IP66
Standards
China RoHS, EU RoHS, REACH, WEEE
Shock Resistance
50 gn IEC 60068-2-27
Protective Treatment
TC
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Operating Position
any position
Device Short Name
9001K
Bezel Material
Metal
Ambient Air Temperature For Operation
-25-70°C
Contacts Type And Composition
without contact block
Device Presentation
basic element
Product Certifications
NEMA || UL 508
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Type Of Operator
spring return with latch
Product Or Component Type
head for joystick controller
Operator Profile
80 mm long operating shaft
Overvoltage Category
II IEC 61140
Ip Degree Of Protection
IP66 IEC 60529
Shape Of Signaling Unit Head
octagonal
Ambient Air Temperature For Storage
-40-70°C
Series
9001K
Latch Type
Latching
Switch Action
Momentary
Number of Positions
4
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4

Description

Joystick, 30 mm, Number of Directions 4, Not Included Contact Form, Contact Rating Not Included, NEMA Contact Rating Designation Not Applicable, Joystick Material Metal, Bezel Metal, Latching, Vertical and Horizontal Direction of Operation, Action Momentary, NEMA Rating 13, 4, IP Rating IP66, Standards China RoHS, EU RoHS, REACH, WEEE
