  15. Lamp Module, 22mm, 230/240VAC, Incandescent

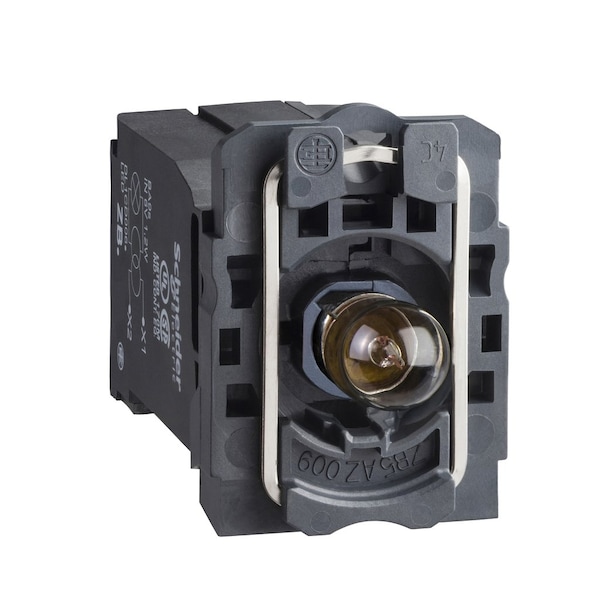

Schneider Electric Lamp Module, 22mm, 230/240VAC, Incandescent ZB5AV4 - main

Lamp Module, 22mm, 230/240VAC, Incandescent

  • Mfr # ZB5AV4

  • Zoro # G0565713

product price: $85.99
/ea
Free Shipping & Returns

Key Features

Color
Clear
Lamp Voltage
6V AC
Terminal Connection
Screw Clamp
Lamp Type
Incandescent
Lamp Module Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AV4
Zoro #
G0565713
UPC #
785901383352
Country of Origin
France

Dimensions

Size
22 mm
Compatible Panel Cutout Diameter
22 mm
Overall Depth
2.17 in
Overall Height
1.65 in
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo
Cad Overall Width
30 mm
Cad Overall Height
42 mm
Cad Overall Depth
55 mm

Details

Item
Lamp Module
Color
Clear
Lamp Voltage
6V AC
Terminal Connection
Screw Clamp
Lamp Type
Incandescent
Lamp Module Voltage
240V AC
Lamp Module Type
Transformer
IP Rating
Not Rated
Material of Construction
Plastic
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Body Material
Plastic
Compatible Operator
Selector Switch
NEMA Enclosure Rating
No Enclosure
Includes Bulb
Bulb Included
Voltage Rating - Maximum
240 V AC
Compatible with Series
XB5
Compatible with Brand
Schneider
Terminal Connection Type
Screw Clamp Terminals
Ambient Air Temperature For Operation
-40-55°C
Electrical Shock Protection Class
class II IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Light Source
incandescent
Tightening Torque
0.8-1.2 N.m EN 60947-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation
basic sub-assemblies
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Mounting Of Block
front mounting
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Signalling Type
steady
Terminals Description Iso N°1
(X1-X2)PL
Product Certifications
UL Listed || BV || CSA || LROS (Lloyds register of shipping) || GL || DNV
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Electrical Composition Code
P4 || M9
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
[Us] Rated Supply Voltage
230 to 240 V AC 50/60 Hz
Light Block Supply
via integral transformer 1.2 VA 6 V
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Fixing Collar Material
plastic
Device Short Name
ZB5
Product Or Component Type
complete body/light block assembly
Protective Treatment
TH
Bulb Base
BA 9s

Description

Lamp Module, Lamp Module Voltage 240V AC, Clear, Lamp Type Incandescent, Lamp Voltage 6V AC, Terminal Connection Screw Clamp, 22 mm, Lamp Module Type Transformer, Plastic Material of Construction, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating Not Rated, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
