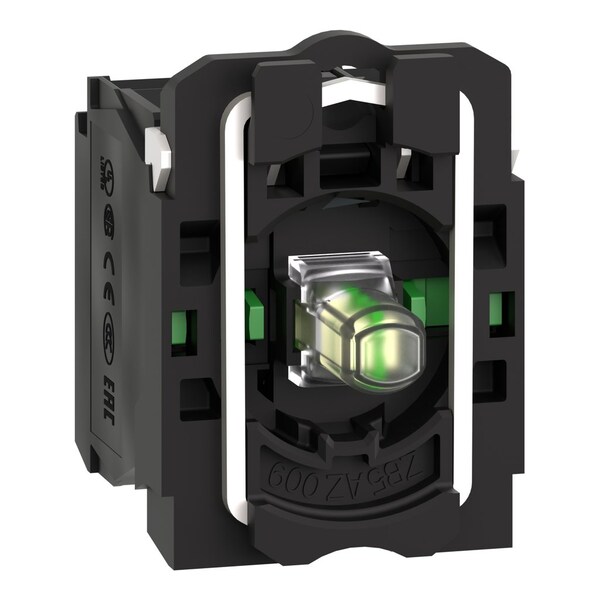

Schneider Electric Lamp Module and Contact Block, 22mm, 2NO ZB5AW0B13 - main

Lamp Module and Contact Block, 22mm, 2NO

  • Mfr # ZB5AW0B13

  • Zoro # G1886157

product price: $73.55
/ea

Key Features

Contact Rating
10 A @ 600V AC/DC
Voltage
24V AC/DC
Size
22 mm
Lamp Type
LED
Terminal Connection
Screw Clamp terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW0B13
Zoro #
G1886157
UPC #
785901387756
Country of Origin
France

Dimensions

Size
22 mm
Compatible Panel Cutout Diameter
22 mm

Details

Item
Lamp Module and Contact Block
Contact Rating
10 A @ 600V AC/DC
Voltage
24V AC/DC
Lamp Type
LED
Terminal Connection
Screw Clamp terminals
Contact Form
2NO
Lamp Module Type
Full Voltage
Color
White
Lamp Module Voltage
24V AC/DC
Basic Material
Plastic
NEMA Contact Rating Designation
A600, Q600
For Use With
Plastic, ZB5 Series
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Lamp Voltage
24V AC/DC
Standards
BV, CSA, DNV, GL, LROS, RoHS, UL Listed
IP Rating
IP20
Type
Steady Signal
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Hz
50/60 Hz
Average Life
100000 hr
Lamp Color
White
Terminal Connection Type
Screw Clamp
Compatible with Series
XB5
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Includes Bulb
Bulb Included
Compatible Product Type
Plastic Operators

Description

Lamp Module and Contact Block, Color White, Contact Form 2NO, For Use With Plastic, ZB5 Series, Lamp Module Type Full Voltage, Lamp Module Voltage 24V AC/DC, Lamp Type LED, 22 mm, Lamp Voltage 24V AC/DC, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600, Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP20, Standards BV, CSA, DNV, GL, LROS, RoHS, UL Listed
