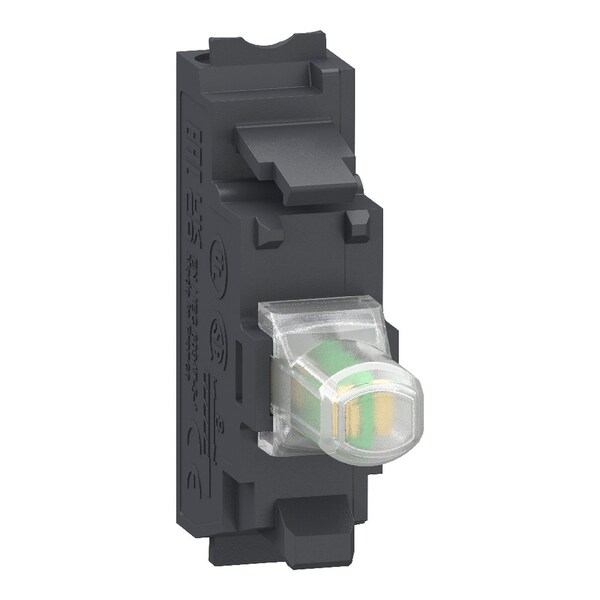

Lamp Module With Bulb 22 mm, White

  • Mfr # ZBVG15

  • Zoro # G3547765


product price:  $46.55
/ea

Key Features

Voltage
110 to 120V AC
Color
White
Material of Construction
Plastic
Lamp Type
LED
Terminal Connection
Spring Clamp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZBVG15
Zoro #
G3547765
UPC #
785901707844
Country of Origin
France

Dimensions

Size
22 mm
Manufacturer Warranty Length
18 mo
Compatible Panel Cutout Diameter
22 mm

Details

Item
Lamp Module
Voltage
110 to 120V AC
Color
White
Material of Construction
Plastic
Lamp Type
LED
Terminal Connection
Spring Clamp
Lamp Module Voltage
120V AC
Lamp Module Type
Full Voltage
Lamp Voltage
120V AC
For Use With
Schneider Electric 22mm Operators
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
IP Rating
Not Rated
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Hz
50/60 Hz
Type
Steady Signal
Body Material
Plastic
Average Life
100000 hr
Compatible with Series
XB4, XB5
Compatible Operator
Selector Switch
NEMA Enclosure Rating
No Enclosure
Terminal Connection Type
Push-In
Includes Bulb
Bulb Included
Compatible with Brand
Schneider
Voltage Rating - Maximum
120 V AC

Description

This Harmony white light block operates with a universal LED. It is supplied with 110V to 120V AC and uses push-in terminal connections. It has a plastic body. It is compatible with Harmony XB4 and Harmony XB5 units. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip-together assembly and connected with simple push-in terminal connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. This light block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
