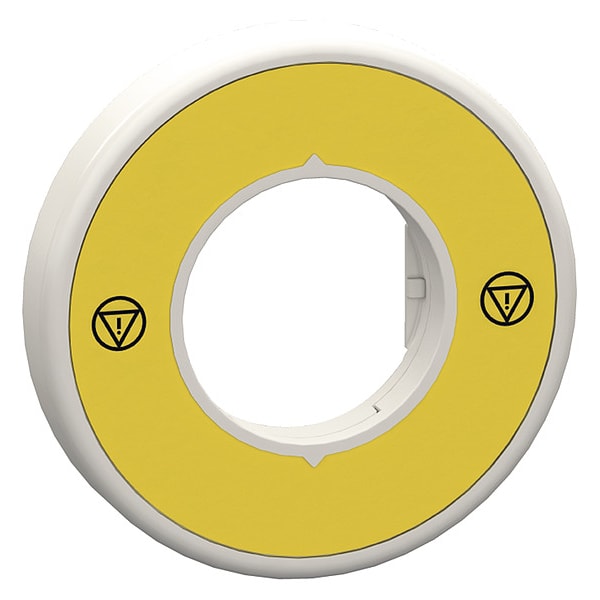

Legend Ring, Yellow/Yellow, Round

Legend Ring

Plastic

No Legend

Round

CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1

Legend Ring

XB4, XB5

Yellow

Yellow

Tab

19.2-30 V DC || 21.6-26.4 V AC

intermediate ring

7000000 Pa 55°C 0.1 m

with illuminated ring

IK05 EN 50102

emergency stop mushroom head push-button

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

red

10 V/m IEC 61000-4-3

1 kV IEC 61000-4-5

24 V AC/DC 50/60 Hz

protected LED

18 mA

2 kV IEC 61000-4-4

4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

integral LED

XB4 || XB5

unmarked yellow

illuminated unmarked legend ring

round

24 V 3)EN/IEC 60947-1

steady

class II IEC 61140

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

-40-70°C

red

TH

5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6

UL Listed || CSA

-40-70°C
