  15. LegendRing, ArretD'Urgence, Blk/Ylw, Round

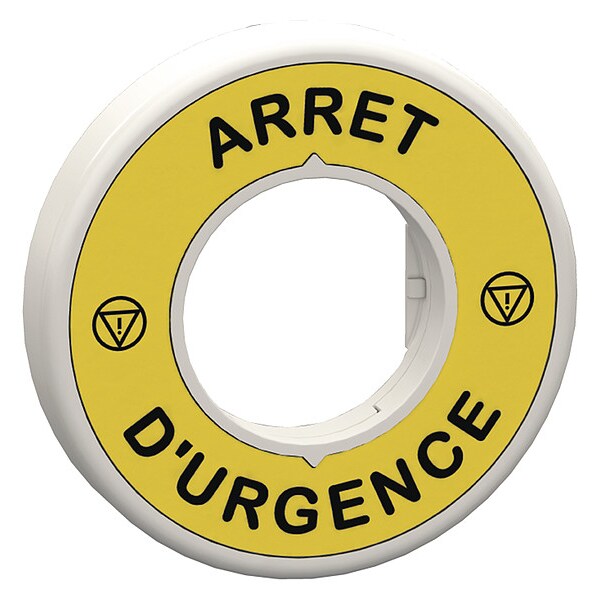

Schneider Electric LegendRing, ArretD'Urgence, Blk/Ylw, Round ZBY9W2B130 - main

LegendRing, ArretD'Urgence, Blk/Ylw, Round

  • Mfr # ZBY9W2B130

  • Zoro # G3571846

product price: $41.59
/ea

Key Features

Material
Plastic
Height
60 mm
Width
9.3 mm
Legend
Arret D'Urgence
Legend/Background Color
Black/Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZBY9W2B130
Zoro #
G3571846
UPC #
-
Country of Origin
Indonesia

Dimensions

Height
60 mm
Width
9.3 mm
Diameter
60 mm
Compatible Panel Cutout Diameter
22 mm
Overall Diameter
2 3/8 in
Manufacturer Warranty Length
18 mo
Label Dimensions
Ø 60 mm

Details

Item
Legend Ring
Material
Plastic
Legend
Arret D'Urgence
Legend/Background Color
Black/Yellow
Shape
Round
Standards
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Product Type
Legend Ring
Language
French
Legend Color
Black
Background Color
Yellow
Keyway Type
Tab
Compatible with Series
XB4, XB5
Electromagnetic Emission
class B IEC 55011
Operator Additional Information
with illuminated ring
Product Or Component Type
illuminated marked legend ring
Protective Treatment
TH
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Bulb Base
integral LED
Surge Withstand
1 kV IEC 61000-4-5
Light Source
protected LED
Compatibility Code
XB4 || XB5
Device Presentation
intermediate ring
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Resistance To Electrostatic Discharge
4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Marking
black ARRET D'URGENCE yellow
Light Source Colour
red
Signalling Type
steady
Current Consumption
18 mA
Ambient Air Temperature For Operation
-40-70°C
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Ik Degree Of Protection
IK05 EN 50102
[Ui] Rated Insulation Voltage
24 V 3)EN/IEC 60947-1
Shape Of Signaling Unit Head
round
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Accessory / Separate Part Destination
emergency stop mushroom head push-button
Electrical Insulation Class
class II IEC 61140
Resistance To Fast Transients
2 kV IEC 61000-4-4
Product Certifications
UL Listed || CSA
Cap/Operator Or Lens Colour
red
Ambient Air Temperature For Storage
-40-70°C

Description

Legend Ring, Round, Legend Arret D'Urgence, Legend/Background Color Black/Yellow, Material Plastic, Height 60 mm, Width 9.3 mm, Diameter 60 mm
