- MFR #
- ZBY9W3B630
- Zoro #
- G3548423
- UPC #
- -
- Country of Origin
- Indonesia

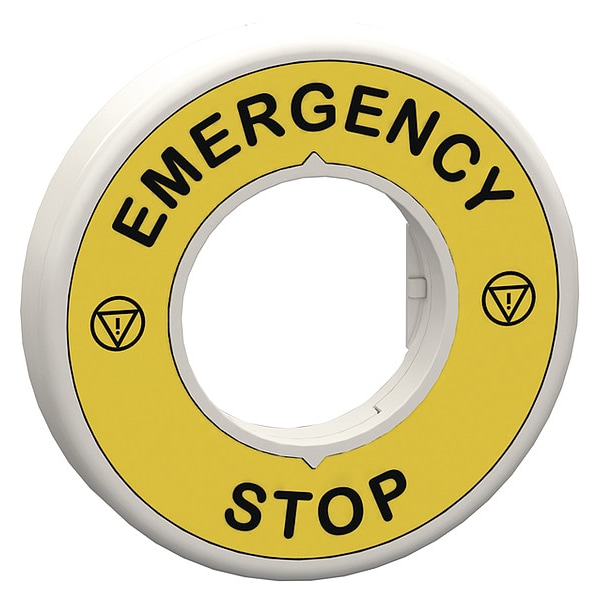

- Item
- Legend Ring
- Material
- Plastic
- Standards
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Shape
- Round
- Legend
- Arresto Emergenza
- Legend/Background Color
- Black/Yellow
- Product Type
- Legend Ring
- Legend Color
- Black
- Compatible with Series
- XB4, XB5
- Background Color
- Yellow
- Keyway Type
- Tab
- Language
- Spanish
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Bulb Base
- integral LED
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Shape Of Signaling Unit Head
- round
- Ambient Air Temperature For Operation
- -40-70°C
- Electrical Insulation Class
- class II IEC 61140
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- Product Or Component Type
- illuminated marked legend ring
- Protective Treatment
- TH
- Cap/Operator Or Lens Colour
- 2 colours choice
- Operator Additional Information
- with illuminated ring
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Product Certifications
- UL Listed || CSA
- [Ui] Rated Insulation Voltage
- 24 V 3)EN/IEC 60947-1
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Ik Degree Of Protection
- IK05 EN 50102
- Device Presentation
- intermediate ring
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Electromagnetic Emission
- class B IEC 55011
- Light Source Colour
- white or red
- Compatibility Code
- XB4 || XB5
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
- Marking
- black ARRESTO EMERGENZA yellow
- Surge Withstand
- 1 kV IEC 61000-4-5
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Signalling Type
- steady
- Current Consumption
- 18 mA
- Ambient Air Temperature For Storage
- -40-70°C
- Light Source
- protected LED
- Accessory / Separate Part Destination
- emergency stop mushroom head push-button
