  15. Light block, Harmony XB4, Explosive atmosphere, Green LED, 24.254V

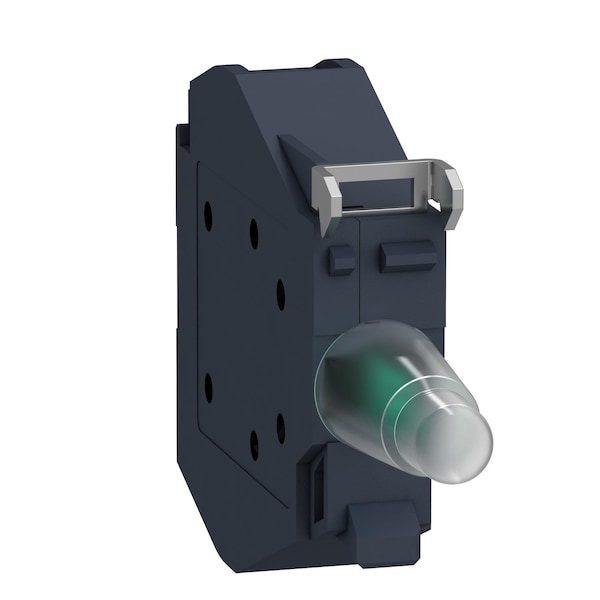

Schneider Electric Light block, Harmony XB4, Explosive atmosphere, Green LED, 24.254V ZBVBM3GEX - main

Light block, Harmony XB4, Explosive atmosphere, Green LED, 24.254V

  • Mfr # ZBVBM3GEX

  • Zoro # G3546122

product price: $160.99
/ea
Free Shipping & Returns

Key Features

Color
Green
Size
22mm
Lamp Voltage
24 to 254 V AC/DC
Terminal Connection
Screw Clamp
Lamp Type
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZBVBM3GEX
Zoro #
G3546122
UPC #
-
Country of Origin
France

Dimensions

Size
22mm
Cad Overall Height
10 mm
Cad Overall Width
38 mm
Cad Overall Depth
58.8 mm

Details

Item
Light block
Color
Green
Lamp Voltage
24 to 254 V AC/DC
Terminal Connection
Screw Clamp
Lamp Type
LED
IP Rating
65
Standards
EN/IEC 60079-31, ANSI/ISA 12.12.01, UL 60079-31, EN/IEC 60079-18, EN/IEC 60079-0, EN/IEC 60079-7, UL 60079-18, UL 60079-0, CSA C22.2 No 213
Device Short Name
ZBV
Signalling Type
steady
Product Certifications
cULus
Protective Treatment
TH
Ambient Air Temperature For Operation
-50-95°C
Light Source Colour
green
Mounting Of Block
front mounted
Light Source
LED
Ip Degree Of Protection
IP65 IEC 60529
Product Or Component Type
light block
Tightening Torque
0.8-1.2 N.m EN 60947-1
Light Block Supply
direct
Marking
Ex eb mb IIC Gb
Environmental Characteristic
hazardous location class I division 2
Bulb Base
integral LED
Current Consumption
2 to 10 mA
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² without cable end EN 60947-1 || screw clamp terminals, 1 x 2.5 mm² with cable end EN 60947-1
Ambient Air Temperature For Storage
-50-70°C
[Us] Rated Supply Voltage
24 to 254 V AC/DC
Service Life
100000 h at ambiant temperature
Range of Product
Harmony XB4

Description

Light block, Green, Lamp Type LED, Lamp Voltage 24 to 254 V AC/DC, Terminal Connection Screw Clamp, 22mm, IP Rating 65, Standards EN/IEC 60079-31, ANSI/ISA 12.12.01, UL 60079-31, EN/IEC 60079-18, EN/IEC 60079-0, EN/IEC 60079-7, UL 60079-18, UL 60079-0, CSA C22.2 No 213
