  11. Logic Controller, 11 Inputs, 11 Outputs

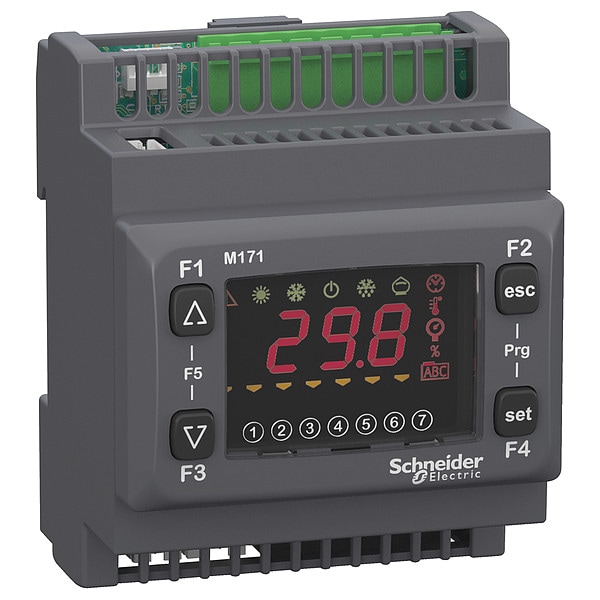

Schneider Electric Logic Controller, 11 Inputs, 11 Outputs TM171ODM22S - main

Logic Controller, 11 Inputs, 11 Outputs

  • Mfr # TM171ODM22S

  • Zoro # G3462305

product price: $353.99
/ea
Free Shipping & Returns

Key Features

Output Type
(5) Analog, (6) Digital
Number of Outputs
11
Number of Inputs
11
Features
(2) Solid State Relays, Volt-Free Contacts, Relative Humidity 10 and 90% Non-Condensing
Standards
EN/IEC 60730
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TM171ODM22S
Zoro #
G3462305
UPC #
606480752797
Country of Origin
Italy

Dimensions

Height
1.26 in
Depth
2.99 in
Width
2.91 in
Overall Height
1.26 in
Overall Width
2.91 in
Overall Depth
2.99 in

Details

Item
PLC
Output Type
(5) Analog, (6) Digital
Number of Outputs
11
Number of Inputs
11
Features
(2) Solid State Relays, Volt-Free Contacts, Relative Humidity 10 and 90% Non-Condensing
Standards
EN/IEC 60730
Clock
Yes
Amps
2 A
Timers
Programmable
Display
4 Seven-Segment Display
Description/Special Features
2 SSR, contacts usage Volt-free contacts, Discount Schedule PC12, Environmental Disclosure Product Environmental Profile, Modbus, Modicon M171 Optimized Display 22 I/Os, mounting support Flush mounting, product specific application HVAC and pumping solution, relative humidity 10¿90 % non-condensing
Port Type
1 LAN Expansion Bus, 1 RS485
Input Voltage
12 to 24V AC/DC
Slots
1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link
Product Type
Programmable Logic Controller
Number Of Port
1 LAN expansion bus || 1 RS485 - screw terminal block Modbus serial link)
Mounting Support
flush mounting
[Us] Rated Supply Voltage
12 to 24 V +/- 10 % AC || 24 V +/- 10 % DC
Product Or Component Type
controller
Overvoltage Category
II
Product Certifications
CSA || CE || cURus || EAC
Analogue Output Number
3 voltage 0 to 10 V || 1 PWM/PPM 20 kHz, 12 V, 35 mA || 2 triac 3 A
Discrete Output Number
1 open collector || 3 relay outputs SPST with same common || 2 solid state SSR with independent common
Sensor Power Supply
12-12 V DC 85 mA || 5-5 V DC 20 mA
Analogue Input Number
2 configurable || 3 analog input NTC
Local Signalling
6 LEDs (red) || 5 LEDs (green) || for programmable 7 LEDs (amber)
Contacts Usage
volt-free contacts
Analogue Input Type
voltage 0 to 5 V ratiometric) || voltage 0 to 10 V || NTC temperature probe - 50 to 100 °C 0.1 °C || current 0 to 20 mA/4 to 20 mA || voltage 0 to 1 V
Ambient Air Temperature For Storage
-40-85 °C
Number of Inputs/Outputs
22
Display Type
LED
Discrete Output Current
2 A relay || 2 A triac
Relative Humidity
10-90 % non-condensing
Ambient Air Temperature For Operation
-20-55 °C UL 60730-1
Discrete Input Logic
sink or source (positive/negative)
Realtime Clock
built-in -20-55 °C
Ip Degree Of Protection
IP20
Product Specific Application
HVAC and pumping solution
Upgradeability
Upgradeable through digital modules and upgraded components
Power Consumption In W
4 W
Pollution Degree
2
Discrete Input Number
6
Input/Output Number
5 analog output || 6 digital input || 5 analog input || 6 digital output
Output Circuit Voltage - Minimum
0 V
Mounting Style
Surface
Current
2 A
Communication Protocol
Modbus
Output Circuit Current - Maximum
2 A
Clock Included
Clock Included
Input Circuit Current - Minimum
4 mA
DC Voltage Rating
24V DC
Output Circuit Voltage - Maximum
10 V
AC Voltage Rating
12 to 24V AC
Input Type
(5) Analog, (6) Digital
Input Circuit Voltage - Minimum
0 V
Series
M171
Input Circuit Current - Maximum
20 mA
Input Circuit Voltage - Maximum
10 V

Description

PLC, Input Voltage 12 to 24V AC/DC, Output Type (5) Analog, (6) Digital, 2 A Amps, 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link Slots, Number of Inputs 11, Number of Outputs 11, Timers Programmable, Yes Clock, 4 Seven-Segment Display Display, Port Type 1 LAN Expansion Bus, 1 RS485
