  11. Logic Controller, 11 Inputs, 11 Outputs

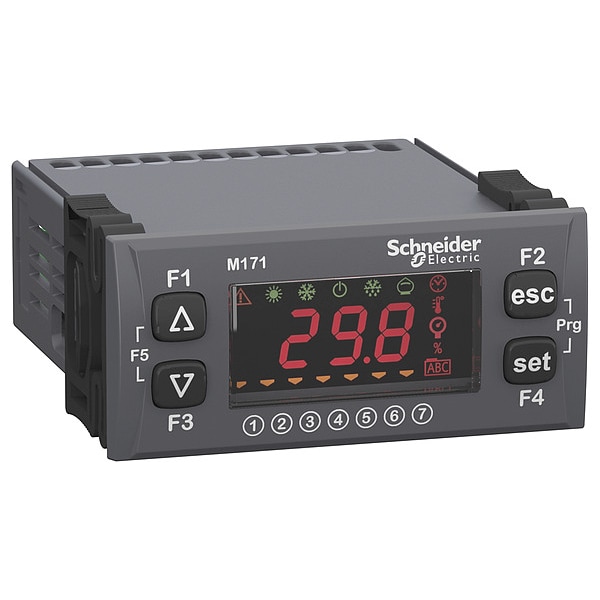

Schneider Electric Logic Controller, 11 Inputs, 11 Outputs TM171OFM22R - main

Logic Controller, 11 Inputs, 11 Outputs

  • Mfr # TM171OFM22R

  • Zoro # G3461185

product price: $214.99
/ea
Free Shipping & Returns

Key Features

Output Type
(5) Analog, (6) Digital
Number of Outputs
11
Number of Inputs
11
Features
Volt-Free Contacts
Width
5.51 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TM171OFM22R
Zoro #
G3461185
UPC #
785901723820
Country of Origin
Italy

Dimensions

Width
5.51 in
Height
4.33 in
Depth
2.43 in
Overall Width
5.51 in
Overall Height
4.33 in
Overall Depth
2.43 in

Details

Item
PLC
Output Type
(5) Analog, (6) Digital
Number of Outputs
11
Number of Inputs
11
Features
Volt-Free Contacts
Timers
Programmable
Port Type
1 LAN Expansion Bus, 1 RS485
Slots
1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link
Description/Special Features
contacts usage Volt-free contacts, Discount Schedule PC12, Modbus, Modicon M171 Optimized Flush mounting 22 I/Os, product specific application HVAC and pumping solution
Display
LED
Standards
EN 60730-1 || UL 60730-1 || IEC 61000-4-6 || IEC 61000-4-3 || UL 60730-2-9 || IEC 61000-4-4 || IEC 61000-4-2 || CSA E60730-2-9 || IEC 61000-4-5 || EN 60068-2-6 Fc || IEC 61000-4-11 || EN 60730-2-9 || EN 60068-2-27 || CAN/CSA-E60730-1 || UL94 (material V0)
Amps
2 A
Input Voltage
12 to 24V
Product Type
Programmable Logic Controller
Discrete Input Logic
sink or source (positive/negative)
Discrete Input Number
6
Analogue Input Number
2 configurable || 3 analog input NTC
Analogue Output Number
3 voltage 0 to 10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA
Product Or Component Type
controller
Sensor Power Supply
12-12 V DC 85 mA || 5-5 V DC 20 mA
Discrete Output Number
1 open collector || 3 relay outputs SPST with same common || 2 relay outputs SPST with independent common
Product Specific Application
HVAC and pumping solution
Product Certifications
EAC || CSA || RCM || CE || cURus
Number of Inputs/Outputs
22
[Us] Rated Supply Voltage
12 to 24 V || 24 V
Number Of Port
1 LAN expansion bus || 1 RS485 - screw terminal block Modbus serial link)
Input/Output Number
5 analog output || 6 digital input || 5 analog input || 6 digital output
Upgradeability
Upgradeable through digital modules and upgraded components
Contacts Usage
volt-free contacts
Analogue Input Type
voltage 0 to 5 V ratiometric) || voltage 0 to 10 V || NTC temperature probe - 50 to 100 °C 0.1 °C || current 0 to 20 mA/4 to 20 mA || voltage 0 to 1 V
Discrete Output Current
2 A relay
Output Circuit Voltage - Minimum
0 V
Mounting Style
Surface
Clock Included
Clock Included
Display Type
LED
Output Circuit Current - Maximum
2 A
Input Type
(5) Analog, (6) Digital
Current
2 A
Input Circuit Current - Minimum
4 mA
Input Circuit Voltage - Maximum
10 V
Input Circuit Voltage - Minimum
0 V
DC Voltage Rating
24V DC
Input Circuit Current - Maximum
20 mA
AC Voltage Rating
12 to 24V AC
Series
M171
Communication Protocol
Modbus
Output Circuit Voltage - Maximum
10 V

Description

PLC, Input Voltage 12 to 24V, Output Type (5) Analog, (6) Digital, 2 A Amps, 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link Slots, Number of Inputs 11, Number of Outputs 11, Timers Programmable, LED Display, Port Type 1 LAN Expansion Bus, 1 RS485, contacts usage Volt-free contacts, Discount Schedule PC12, Modbus, Modicon M171 Optimized Flush mounting 22 I/Os, product specific application HVAC and pumping solution, Depth 2.43 in, Height 4.33 in, Width 5.51 in
