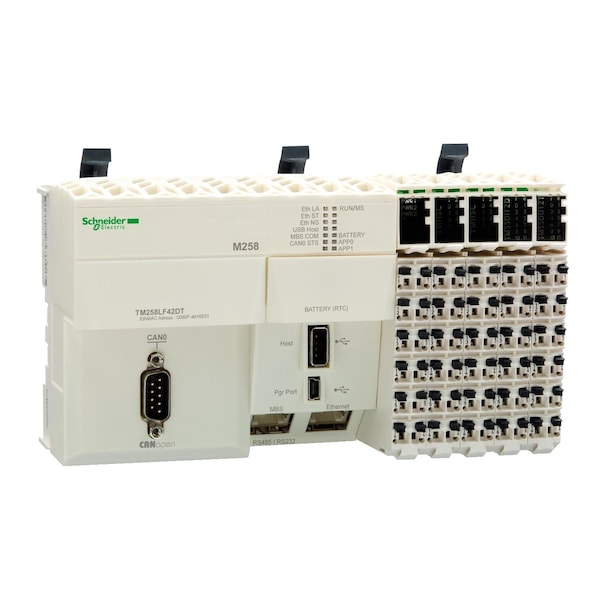

Logic controller, Modicon M258, compact base, 42 IO, 24V DC, CANopen

  • Mfr # TM258LF42DT

  • Zoro # G700428095

product price:
$
2,481.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Height
5.1"
Depth
85 mm
Standards
UL 508, CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213
Width
6.1"
Length
12.2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TM258LF42DT
Zoro #
G700428095
UPC #
-
Country of Origin
Austria
Item
Compact base M258 - 42 I/O - 24 V DC - C
Standards
UL 508, CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213
Memory Description
flash 128 MB, internal RAM 64 MB
Discrete Output Number
12 output, 4 fast output
Discrete Input Voltage
24 V
Output Voltage Limits
19.2...28.8 V
Ip Degree of Protection
IP20IEC 61131-2
Discrete I/O Number
42
Configurable Filtering Time
0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
Storage Altitude
0-3000 m
Power Consumption In W
13.03 W
Voltage State 1 Guaranteed
>= 15 V fast input, >= 15 V fast output, >= 15 V regular input
Discrete Output Voltage
24 V DC
Pollution Degree
2 IEC 60664
Discrete Input Voltage Type
DC
Realtime Clock
without any user calibration clock, clock drift < 30 s/month at 25-25°C, with user calibration clock, clock drift <= 6 s/month
Line Rated Current
0.04 A embedded expert modules power, 10 A I/O power segment, 0.26 A main supply
Peak Current
100 kA <= 70 s)main supply, 25 kA <= 500 s)I/O power segment, 50 kA <= 150 s)embedded expert modules power, 1.2 A > 70 s)main supply
Pvc Free
Yes
Ambient Air Temperature For Operation
0-55°C without derating horizontal installation), 0-60°C with derating factor horizontal installation), 0-50°C vertical installation)
Anti Bounce Filtering
2µs...4 ms configurable fast input/regular input and fast output
Relative Humidity
5-95 % without condensation
Resistance To Electromagnetic Fields
1 V/m 2...2.7 GHz IEC 61000-4-3, 10 V/m 80...2000 MHz IEC 61000-4-3
Shock Resistance
15 gn 11 ms
Discrete Output Logic
source
Ambient Air Temperature For Storage
-25-70°C
Mounting Support
symmetrical DIN rail
Surge Withstand
0.5 kV differential mode IEC 61000-4-5, 1 kV common mode IEC 61000-4-5
Operating Altitude
0...6561.68 ft (0...2000 m)
Discrete Input Number
10 fast input, 12 input, 4 regular input
Input Impedance
6 kOhm fast input, 6 kOhm regular input
Discrete Input Logic
sink fast input, sink regular input, source input
Discrete Output Current
4 mA fast output
Discrete Input Current
4 mA fast input, 4 mA regular input
Maximum Cable Distance Between Devices
<30 m fast input, <30 m fast output, <30 m regular input
Local Signalling
1 LED per channel I/O state, 1 LED CAN0 STS, 1 LED MBS COM, 1 LED green/red APP0, 1 LED green/red APP1, 1 LED green/red Eth NS (Ethernet network status), 1 LED green/red Eth ST (Ethernet status), 1 LED green/red RUN/MS (module status), 1 LED green/red USB host, 1 LED green/yellow Eth LA (Ethernet activity), 1 LED red BATT (battery status)
Range of Product
Modicon M258
Vibration Resistance
1 gn 8.4-150 Hz DIN rail, 3.5 mm 5-8.4 Hz DIN rail
Transmission Rate
125 kbit/s 500-500 m CANopen, 250 kbit/s 250-250 m CANopen, 50 kbit/s 1000-1000 m CANopen, 500 kbit/s 100-100 m CANopen, 10 kbit/s 5000-5000 m CANopen, 1000 kbit/s 4-4 m CANopen, 20 kbit/s 2500-2500 m CANopen, 800 kbit/s 25-25 m CANopen
Marking
CE
Data Backed Up
variables of type retain and retain persistent CR2477M Renata, 1.5 years
Counting Input Number
8 200 kHz
[Us] Rated Supply Voltage
24 V DC embedded expert modules power, 24 V DC I/O power segment, 24 V DC main supply
Supply Voltage Limits
20.4-28.8 V
Product or Component Type
logic controller
Integrated Connection Type
1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps, 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX, 1 isolated serial link mini B USB 480 Mbit/s, 1 isolated serial link USB type A 480 Mbit/s, 1 CANopen male SUB-D 9 CANopen master
Disturbance Radiated/Conducted
CISPR 11
Isolation Between Channels And Internal Logic
500 Vrms AC
Resistance To Electrostatic Discharge
4 kV on contact IEC 61000-4-2, 8 kV in air IEC 61000-4-2
Resistance To Fast Transients
1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable), 2 kV IEC 61000-4-4 power lines)
Voltage State 0 Guaranteed
<= 5 V fast input, <= 5 V fast output, <= 5 V regular input
Product Certifications
GOST-R || cULus || C-tick || CSA
Product Or Component Type
logic controller
Ip Degree Of Protection
IP20IEC 61131-2

Description

Compact base M258 - 42 I/O - 24 V DC - C
