Features
Built-In Epsom Flash Memory, Zelio Soft Programming Software included, (2) Programming Languages (FBD or Ladder), Malfunctions Diagnosing Display, Simple Programming
Standards
EN/IEC 60068-2-27 Ea, EN/IEC 60068-2-6 FC, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 Level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 Level 3
Response Time
10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
Product Type

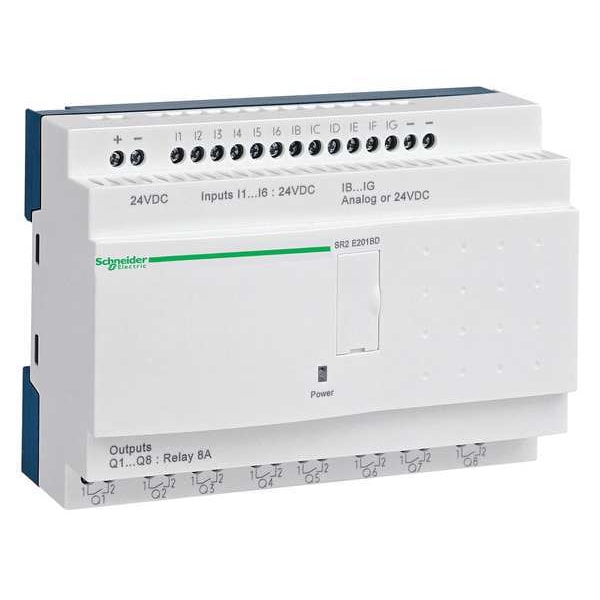

Compact Smart Relay
Repeat Accuracy
+/- 2 % 55 °C analogue input circuit
[Us] Rated Supply Voltage
24 V DC
Voltage State 1 Guaranteed
>= 15 V I1 to IA and IH to IR discrete input circuit || >= 15 V IB to IG used as discrete input circuit
Product Certifications
C-tick || UL || GL || CSA || GOST
Clock Drift
12 min/year 0-55 °C || 6 s/month 25-25 °C
Pollution Degree
2 EN/IEC 61131-2
Switching Capacity In Ma
>= 10 mA 12 V relay output)
Backup Time
10 years 25 °C
Checks
program memory on each power up
Output Thermal Current
8 A for all 8 outputs relay output
Maximum Supply Current
100 mA without extension)
Power Dissipation In W
6 W without extension
Overvoltage Category
III EN/IEC 60664-1
Conversion Error
+/- 5 % 25 °C analogue input circuit || +/- 6.2 % 55 °C analogue input circuit
Operating Altitude
6561.68 ft (2000 m)
Temperature Probe Type
NTC 10k 25 °C || NTC 1000k 25 °C || KTY81 210/220/221/222/250 || Pt 500
Discrete Input Type
resistive
Contacts Type And Composition
NO relay output
Input Compatibility
3-wire proximity sensors PNP discrete input
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Analogue Input Range
0 to 10 V || 0 to 24 V
Current State 0 Guaranteed
<= 0.5 mA IB to IG used as discrete input circuit) || <= 0.75 mA I1 to IA and IH to IR discrete input circuit)
Tightening Torque
0.5 N.m
Current State 1 Guaranteed
>= 1.2 mA IB to IG used as discrete input circuit) || >= 2.2 mA I1 to IA and IH to IR discrete input circuit)
Discrete Input Number
12 EN/IEC 61131-2 type 1
Immunity To Microbreaks
1 ms
Maximum Altitude Transport
3048 m
Disturbance Radiated/Conducted
class B EN 55022-11 group 1
Conversion Time
smart relay cycle time analogue input circuit
Discrete Input Current
4 mA
Input Impedance
12 kOhm IB to IG used as analogue input circuit || 12 kOhm IB to IG used as discrete input circuit || 7.4 kOhm I1 to IA and IH to IR discrete input circuit
Ip Degree Of Protection
IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Operation
-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Reverse Polarity Protection
with
Ambient Air Temperature For Storage
-40-70 °C
Operating Rate In Hz
0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Operating Distance
10 m between stations, with screened cable (sensor not isolated) analogue input circuit
Lsb Value
39 mV analogue input circuit
Mechanical Durability
10000000 cycles relay output
Discrete Input Voltage
24 V DC
Relative Humidity
95-95 % without condensation or dripping water
Number Or Control Scheme Lines
0-240 ladder || 0-500 FBD
Voltage State 0 Guaranteed
<= 5 V I1 to IA and IH to IR discrete input circuit || <= 5 V IB to IG used as discrete input circuit
Electrical Durability
AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1
Counting Frequency
1 kHz discrete input
Product Or Component Type
compact smart relay
Output Voltage Limits
24 to 250 V AC relay output) || 5 to 30 V DC relay output)
Analogue Input Resolution
8 bits
Connections - Terminals
screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mm² AWG 24 to AWG 16) solid || screw terminals, 2 x 0.25 to 2 x 0.75 mm² AWG 24 to AWG 18) flexible with cable end
Maximum Permissible Voltage
30 V analogue input circuit
Supply Voltage Limits
19.2-30 V
Analogue Input Type
common mode
Environmental Characteristic
EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
Input Type
(12) Resistive
Output Circuit Voltage - Minimum
5 V DC, 24 V AC
Output Circuit Current - Maximum
8 A
Clock Included
Clock Not Included
Input Circuit Voltage - Maximum
24 V DC
Input Circuit Current - Maximum
4 mA
Output Circuit Voltage - Maximum
30 V DC, 250 V AC
