Shop SCHNEIDER ELECTRIC

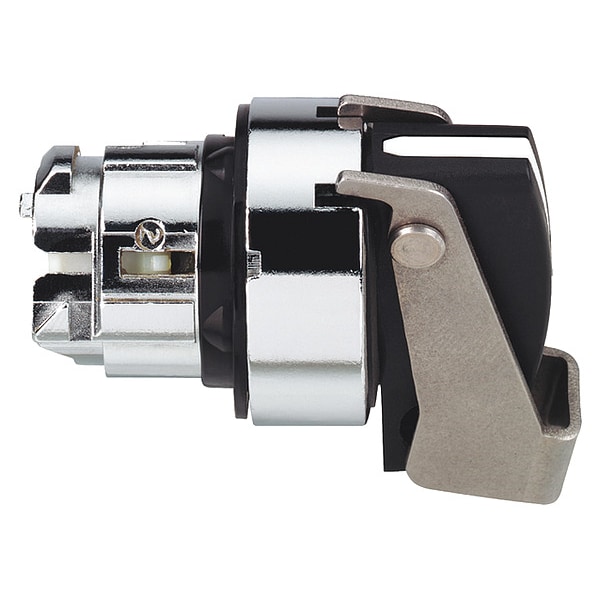

LongHandleSelectorSwitch, Black, 2Pos, 22mm

  • Mfr # ZB4BJ291

  • Zoro # G3571532

product price:  $52.95
/ea

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Extended Lever
Action
Maintained/Maintained
Cam
No Cam Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BJ291
Zoro #
G3571532
UPC #
785901963929
Country of Origin
Korea, Republic of

Dimensions

Size
22 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Height
38 mm
Cad Overall Depth
50 mm
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Long-Handled Selector Switch
Basic Material
Metal
Type of Operator
Extended Lever
Action
Maintained/Maintained
Cam
No Cam Included
Operator Head Material
Plastic
Operator Color
Black
NEMA Rating
13, 4X
Position
2
Bezel Material
Chrome Plated Metal
Bezel Color
Chrome
Switch Operation @ Position D
No Fourth Position
Series
XB4
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
Switch Operation @ Position C
No Third Position
IP Rating
IP67, IP69, IP69K
Key Number
No key
Shape Of Signaling Unit Head
round
Device Short Name
ZB4
Mechanical Durability
1000000 cycles
Operator Profile
black long handle
Head Type
standard
Device Presentation
basic element
Operator Position Information
2 positions 90°
Product Certifications
DNV || GL || CSA || UL Listed || LROS (Lloyds register of shipping) || BV
Ik Degree Of Protection
IK06 IEC 50102
Ambient Air Temperature For Operation
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP67 IEC 60529 || IP69 || IP69K
Overvoltage Category
class I IEC 60536
Locking Position
on the left
Product Or Component Type
head for selector switch
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Protective Treatment
TH
Operator Additional Information
padlockable
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Switch Function @ 3rd Position
No Third Position
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Number of Positions
2
Switch Function @ 4th Position
No Fourth Position
Operator Head Type
Long-Handled Knob
Operator Illumination
Non-Illuminated
Hazardous Location Specification
Not Rated

Description

Long-Handled Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Extended Lever Type of Operator, Operator Color Black, Operator Head Material Plastic, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 13, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No key
