  13. LongHandleSelectorSwitch, Black, 4Pos, 30mm

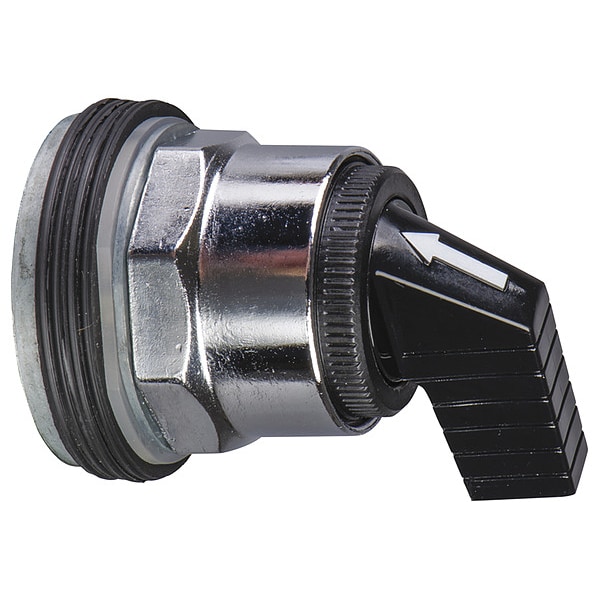

Schneider Electric LongHandleSelectorSwitch, Black, 4Pos, 30mm 9001KS88FB - main

LongHandleSelectorSwitch, Black, 4Pos, 30mm

  • Mfr # 9001KS88FB

  • Zoro # G3571173

product price: $52.65
/ea

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Extended Lever
Action
Maintained/Maintained/Maintained/Maintained
Cam
H
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KS88FB
Zoro #
G3571173
UPC #
785901959250
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Long-Handled Selector Switch
Basic Material
Metal
Type of Operator
Extended Lever
Action
Maintained/Maintained/Maintained/Maintained
Cam
H
Operator Head Material
Plastic
Operator Color
Black
NEMA Rating
1, 12, 13, 2, 3, 3R, 4
Position
4
Bezel Material
Metal
Bezel Color
Black
Series
9001K
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508
Key Number
No Key
IP Rating
IP66
Product Certifications
UL 508 || NEMA
Device Presentation
basic element
Mechanical Durability
500000 cycles
Shape Of Signaling Unit Head
octagonal
Device Short Name
9001K
Product Compatibility
9001KA1 side 1 and 2
Product Or Component Type
head for selector switch
Ambient Air Temperature For Operation
-25-70°C
Cap/Operator Or Lens Colour
black
Operator Profile
long handle, black long handle
Overvoltage Category
class II IEC 61140
Cam Profile
8
Ip Degree Of Protection
IP66 IEC 60529
Shock Resistance
50 gn IEC 60068-2-27
Protective Treatment
TC
Ambient Air Temperature For Storage
-40-70°C
Operator Position Information
4 positions
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Contacts Type And Composition
without contact block
Operator Head Type
Long-Handled Knob
Operator Illumination
Non-Illuminated
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Number of Positions
4
Hazardous Location Specification
Not Rated

Description

Long-Handled Selector Switch, 30 mm, 4 Position, Maintained/Maintained/Maintained/Maintained Action, Extended Lever Type of Operator, Operator Color Black, Operator Head Material Plastic, Bezel Material Metal, Bezel Color Black, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, IP Rating IP66, Cam H, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508, Key Number No Key
