  13. Manstarter Fault Signaling Contact 575Va

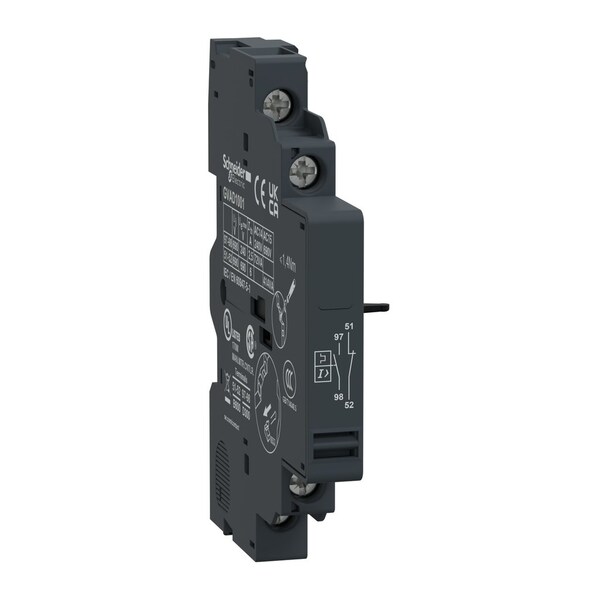

Schneider Electric Manstarter Fault Signaling Contact 575Va GVAD1001 - main

Manstarter Fault Signaling Contact 575Va

  • Mfr # GVAD1001

  • Zoro # G0561605

product price: $68.69
/ea

Key Features

Auxiliary Contact Form
1NC/1NO
Terminal Connection Type
Screw Clamp
Standards
UKCA
Features
Mercury Free
Weight
0.055 kg
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GVAD1001
Zoro #
G0561605
UPC #
785901212409
Country of Origin
Czechia

Dimensions

Overall Height
89 mm
Overall Width
9.3 mm
Overall Depth
66 mm

Details

Item
Motor Starter Auxiliary Contact Block
Auxiliary Contact Form
1NC/1NO
Terminal Connection Type
Screw Clamp
Standards
UKCA
Features
Mercury Free
Weight
0.055 kg
Operating Voltage
48 to 690V AC; 24 to 240V DC
Color
Dark Gray
Rated Insulation Voltage
690 V IEC 60947-1; 300 V UL 508; 300 V CSA C22.2 No 14
Minimum Switching Voltage
17 V
Auxiliary Contacts Operation
Fault signal 1 NO
Conventional Free Air Thermal Current
6 A; 2.5 A fault signalling
Tightening Torque
12.39 lbf.in (1.4 N.m) screw clamp terminals
Minimum Switching Current
5 mA
Mounting Location
Left side
Protection Type
GB2CB to circuit breaker; GG fuse 10 A
Pole Contact Composition
1 NO + 1 NC
Rated Operational Power in W
120 W 240 V DC-13 100000 cycles; 140 W 110 V DC-13 100000 cycles; 140 W 24 V DC-13 100000 cycles; 180 W 60 V DC-13 100000 cycles; 240 W 48 V DC-13 100000 cycles; 15 W 48 V DC-13 1000 cycles; 24 W 24 V DC-13 1000 cycles; 9 W 60 V DC-13 1000 cycles
Rated Operational Power in VA
300 VA 48 V AC-15 100000 cycles; 414 VA 690 V AC-15 100000 cycles; 500 VA 110 to 127 V AC-15 100000 cycles; 500 VA 500 V AC-15 100000 cycles; 650 VA 440 V AC-15 100000 cycles; 720 VA 230 to 240 V AC-15 100000 cycles; 850 VA 380 to 415 V AC-15 100000 cycles; 36 VA 24 V AC-14 1000 cycles; 48 VA 48 V AC-14 1000 cycles; 72 VA 110 to 127 V AC-14 1000 cycles
Environmental Characteristic
Normal environment
Mechanical Durability
100000 cycles
Compatible Manufacturer Model Number
GV2P; GV2LE; GV3L; GV2ME; GV2RT; GV3P; GV2L

Description

Manstarter Fault Signaling Contact 575Va
