  13. Manual Motor Starter, 3 P, Push Button, 4 A

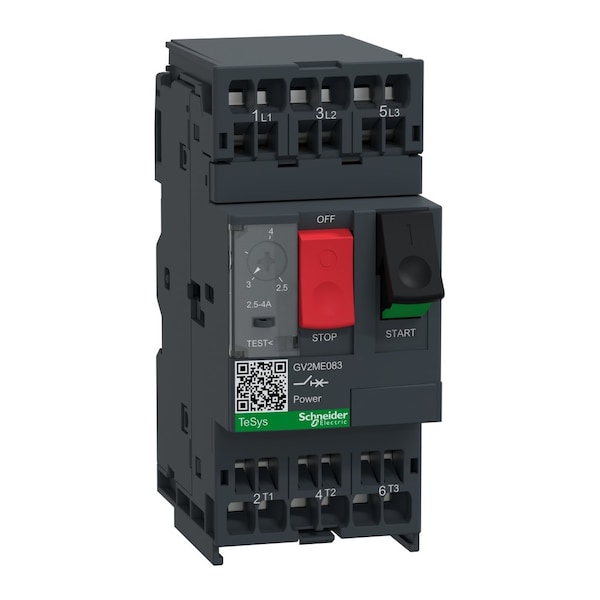

Schneider Electric Manual Motor Starter, 3 P, Push Button, 4 A GV2ME083 - main

Manual Motor Starter, 3 P, Push Button, 4 A

  • Mfr # GV2ME083

  • Zoro # G0851825

product price: $216.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Current AC
4 A
Series
TeSys Deca
Standards
EN/IEC 60947-2 || EN/IEC 60947-4-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME083
Zoro #
G0851825
UPC #
785901212140
Country of Origin
France

Dimensions

Overall Depth
78.5 mm
Overall Height
101 mm
Overall Width
45 mm

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Current AC
4 A
Series
TeSys Deca
Standards
EN/IEC 60947-2 || EN/IEC 60947-4-1
Color
dark grey
Power Dissipation Per Pole
2.5 W
Operating Altitude
6561.68 ft (2000 m)
Climatic Withstand
IACS E10
Motor Power Kw
1.1-1.1 kW 400/415 V AC 50/60 Hz || 1.5-1.5 kW 400/415 V AC 50/60 Hz || 1.5-1.5 kW 500 V AC 50/60 Hz || 2.2-2.2 kW 500 V AC 50/60 Hz
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5 to 150 Hz
Range
TeSys Deca
Network Type
AC
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Ambient Air Temperature For Storage
-40-80°C
Fire Resistance
960°C IEC 60695-2-11
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Thermal Protection Adjustment Range
2.5-4 A IEC 60947-4-1
Product Name
TeSys GV2 || TeSys Deca
Phase Failure Sensitivity
yes IEC 60947-4-1
Trip Unit Technology
thermal-magnetic
Device Short Name
GV2ME
Ik Degree Of Protection
IK04
Rated Duty
continuous IEC 60947-4-1
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Magnetic Tripping Current
51-51 A
Device Application
motor protection
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP20
Maximum Voltage Rating
690V AC
Mechanical Operating Durability
100,000
Electrical Operating Durability
100,000
Maximum Operating Temperature
140 Degrees F
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Starter 600Vac 4Amp Iec
