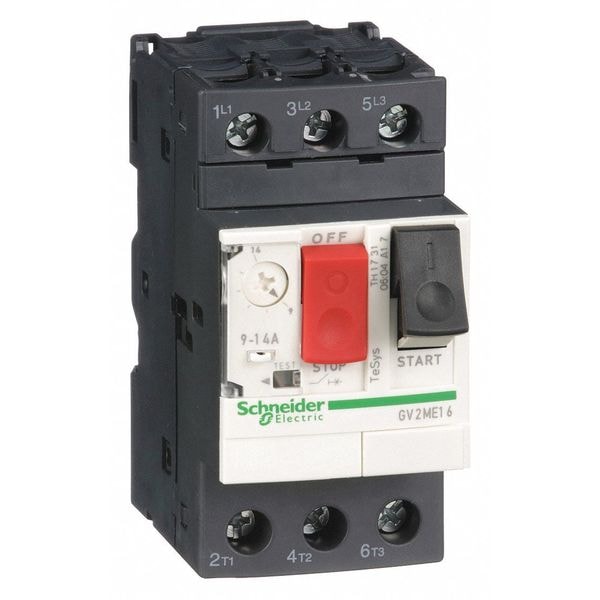

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 14 A

  • Mfr # GV2ME16

  • Zoro # G1200665

product price:
$
218.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
14 A
Series
TeSys Deca
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GV2ME16
Zoro #
G1200665
UPC #
785901211983
Country of Origin
Thailand

Dimensions

Overall Height
3.5 in
Overall Width
1.77 in
Overall Depth
3.09 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
14 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
HP @ 3 Phase - 460-575V
10
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
Pilot Light
No
HP @ 1 Phase - 230V
2 hp
Phase Loss Sensitivity
Yes
HP @ 3 Phase - 575V
10 hp
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Device Short Name
GV2ME
Tightening Torque
1.7 N.m screw clamp terminal
Power Dissipation Per Pole
2.5 W
Product Name
TeSys GV2 || TeSys Deca
Rated Duty
continuous IEC 60947-4-1
Trip Unit Technology
thermal-magnetic
Network Type
AC
Magnetic Tripping Current
170-170 A
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Operating Altitude
6561.68 ft (2000 m)
Motor Power Kw
5.5-5.5 kW 400/415 V AC 50/60 Hz || 7.5-7.5 kW 500 V AC 50/60 Hz || 9-9 kW 690 V AC 50/60 Hz || 11-11 kW 690 V AC 50/60 Hz
Ik Degree Of Protection
IK04
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Phase Failure Sensitivity
yes IEC 60947-4-1
Climatic Withstand
IACS E10
Color
dark grey
Fire Resistance
960°C IEC 60695-2-11
Device Application
motor protection
Ambient Air Temperature For Storage
-40-80°C
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Range
TeSys Deca
Thermal Protection Adjustment Range
9-14 A IEC 60947-4-1
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Horsepower @ Three Phase - 600V AC
10 hp
Minimum Operating Temperature
-4 Degrees F
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Three Phase - 240V AC
3 hp
Minimum Overload Relay Current Setting
9 A
Includes Pilot Light
No
Starter Style
IEC
Resistance Properties
Fire Resistant
Horsepower @ Three Phase - 208V AC
3 hp
Maximum Operating Temperature
140 Degrees F
Horsepower @ Single Phase - 120V AC
3/4 hp
Horsepower @ Single Phase - 240V AC
2 hp
Overload Protection Type
Thermal
Terminal Connection Type
Screw Clamp Terminals
Frequency
50/60 Hz
Mechanical Operating Durability
100,000
Electrical Operating Durability
100,000
Maximum Overload Relay Current Setting
14 A
Status Indicator
No Indicator
IP Rating
IP20
Maximum Voltage Rating
690V AC
NEMA Enclosure Rating
No Enclosure
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 3/4 hp, Horsepower @ Single Phase - 240V AC 2 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 14 A, Horsepower @ Three Phase - 208V AC 3 hp, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 10 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Overload Relay Current Setting 14 A
