  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 2.5 A

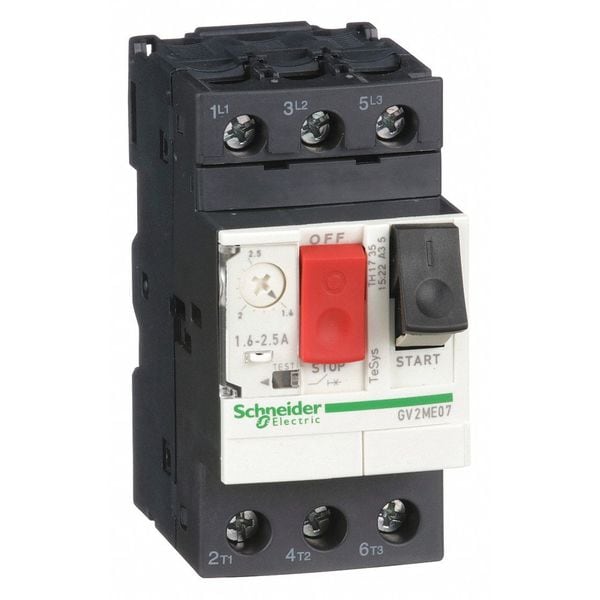

Schneider Electric Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 2.5 A GV2ME07 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 2.5 A

  • Mfr # GV2ME07

  • Zoro # G2019245

product price: $220.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
2.5 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME07
Zoro #
G2019245
UPC #
785901211945
Country of Origin
Thailand

Dimensions

Overall Height
3.5 in
Overall Depth
3.09 in
Overall Width
1.77 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
2.5 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
Pilot Light
Yes
HP @ 3 Phase - 460-575V
1/1-1/2
HP @ 3 Phase - 575V
1 1/2 hp
HP @ 1 Phase - 230V
1/6 hp
Phase Loss Sensitivity
Yes
Range
TeSys Deca
Network Type
AC
Tightening Torque
1.7 N.m screw clamp terminal
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Fire Resistance
960°C IEC 60695-2-11
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Trip Unit Technology
thermal-magnetic
Product Name
TeSys GV2 || TeSys Deca
Climatic Withstand
IACS E10
Phase Failure Sensitivity
yes IEC 60947-4-1
Device Short Name
GV2ME
Device Application
motor protection
Ik Degree Of Protection
IK04
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Power Dissipation Per Pole
2.5 W
Operating Altitude
6561.68 ft (2000 m)
Motor Power Kw
0.75-0.75 kW 400/415 V AC 50/60 Hz || 1.1-1.1 kW 500 V AC 50/60 Hz || 1.5-1.5 kW 690 V AC 50/60 Hz
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Rated Duty
continuous IEC 60947-4-1
Ambient Air Temperature For Storage
-40-80°C
Color
dark grey
Thermal Protection Adjustment Range
1.6-2.5 A IEC 60947-4-1
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Magnetic Tripping Current
33.5-33.5 A
Minimum Overload Relay Current Setting
1.6 A
Electrical Operating Durability
100,000
Terminal Connection Type
Screw Clamp Terminals
Maximum Voltage Rating
690V AC
Includes Pilot Light
No
Starter Style
IEC
Mechanical Operating Durability
100,000
IP Rating
IP20
Horsepower @ Single Phase - 240V AC
1/6 hp
Resistance Properties
Fire Resistant
Horsepower @ Three Phase - 600V AC
1 1/2 hp
Overload Protection Type
Thermal
Horsepower @ Three Phase - 240V AC
1/2 hp
Horsepower @ Three Phase - 208V AC
1/2 hp
Frequency
50/60 Hz
Horsepower @ Three Phase - 480V AC
1 hp
Minimum Operating Temperature
-4 Degrees F
NEMA Enclosure Rating
No Enclosure
Maximum Operating Temperature
140 Degrees F
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 75% 690 V AC 50/60 Hz IEC 60947-2

Description

The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 1.6 ampere to 2.5 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
