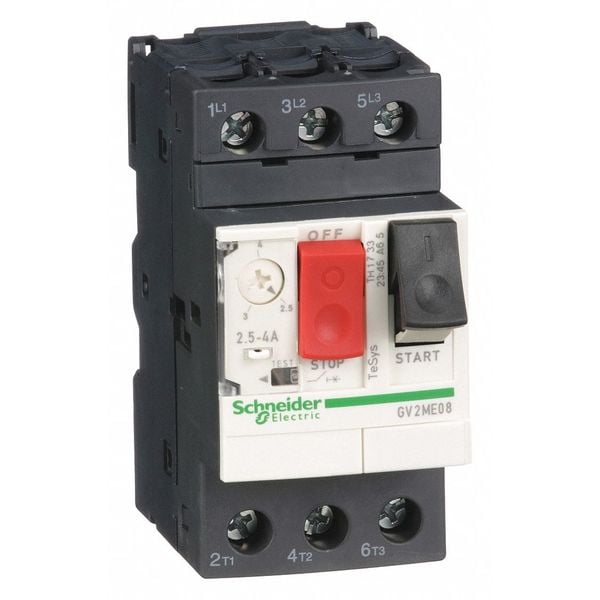

Schneider Electric Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 4 A GV2ME08 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 4 A

  • Mfr # GV2ME08

  • Zoro # G1232682

product price: $217.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
4 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME08
Zoro #
G1232682
UPC #
785901211952
Country of Origin
Thailand

Dimensions

Overall Depth
3.09 in
Overall Width
1.77 in
Overall Height
3.5 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
4 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
HP @ 1 Phase - 230V
1/3 hp
Pilot Light
No
HP @ 3 Phase - 460-575V
2/3
HP @ 3 Phase - 575V
3 hp
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
Phase Loss Sensitivity
Yes
Magnetic Tripping Current
51-51 A
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Ik Degree Of Protection
IK04
Device Short Name
GV2ME
Climatic Withstand
IACS E10
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Phase Failure Sensitivity
yes IEC 60947-4-1
Operating Altitude
6561.68 ft (2000 m)
Ambient Air Temperature For Storage
-40-80°C
Trip Unit Technology
thermal-magnetic
Rated Duty
continuous IEC 60947-4-1
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Thermal Protection Adjustment Range
2.5-4 A IEC 60947-4-1
Motor Power Kw
1.1-1.1 kW 400/415 V AC 50/60 Hz || 1.5-1.5 kW 400/415 V AC 50/60 Hz || 1.5-1.5 kW 500 V AC 50/60 Hz || 2.2-2.2 kW 500 V AC 50/60 Hz || 3-3 kW 690 V AC 50/60 Hz || 2.2-2.2 kW 690 V AC 50/60 Hz
Color
dark grey
Range
TeSys Deca
Tightening Torque
1.7 N.m screw clamp terminal
Network Type
AC
Device Application
motor protection
Fire Resistance
960°C IEC 60695-2-11
Product Name
TeSys GV2 || TeSys Deca
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Power Dissipation Per Pole
2.5 W
Terminal Connection Type
Screw Clamp Terminals
Horsepower @ Single Phase - 240V AC
1/3 hp
Horsepower @ Three Phase - 480V AC
2 hp
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 208V AC
3/4 hp
Horsepower @ Three Phase - 240V AC
1 hp
Overload Protection Type
Thermal
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
3 hp
Resistance Properties
Fire Resistant
Minimum Operating Temperature
-4 Degrees F
Starter Style
IEC
Minimum Overload Relay Current Setting
2.5 A
Maximum Voltage Rating
690V AC
NEMA Enclosure Rating
No Enclosure
Includes Pilot Light
No
Mechanical Operating Durability
100,000
IP Rating
IP20
Horsepower @ Single Phase - 120V AC
1/8 hp
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1/8 hp, Horsepower @ Single Phase - 240V AC 1/3 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 4 A, Horsepower @ Three Phase - 208V AC 3/4 hp, Horsepower @ Three Phase - 240V AC 1 hp, Horsepower @ Three Phase - 480V AC 2 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 3 hp, Maximum Overload Relay Current Setting 4 A
