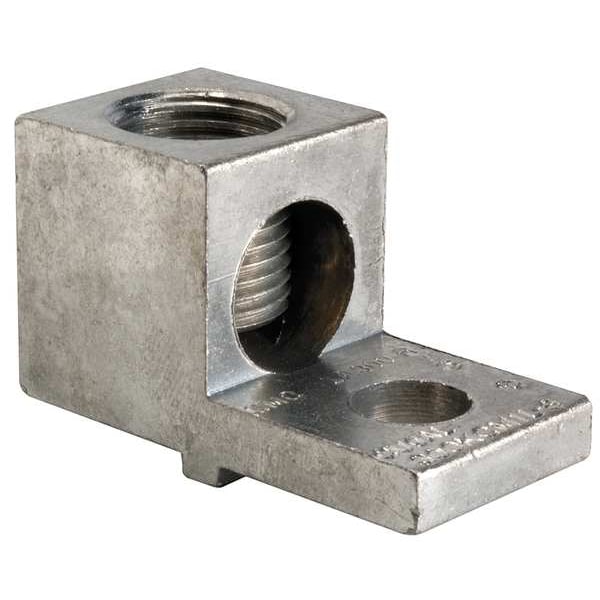

Mechanical Lug, 300 kcmil Max, 1 Conductor, Aluminum
Mfr # DZ2FH1
Zoro # G0751152
CAD Available
product price: $15.69
/eaKey Features
CAD Drawing
For Minimum Wire Size
6 AWG
For Maximum Wire Size
300 kcmil
Number of Conductors
1
Body Material
Aluminum
Contact Finish
Tin
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DZ2FH1
Zoro #
G0751152
UPC #
785901118138
Country of Origin
United States
Dimensions
For Minimum Wire Size
6 AWG
For Maximum Wire Size
300 kcmil
Length
2.0 in
Max. Conductor Size
300 kcmil Stranded
Min. Conductor Size
6 AWG Stranded
Width
3.02 in
Length (Straight Wireway)
2.0 in
Overall Length
2 in
Overall Width
3.02 in
Tongue Width
0.98 in
Hole Diameter
0.65 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 300 kcmil, For Stud Size Not Applicable, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.65 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 131 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Width 0.98 in, Tongue Offset Height 0.31 in, Connector Type Lug
