Shop SCHNEIDER ELECTRIC
See all product information

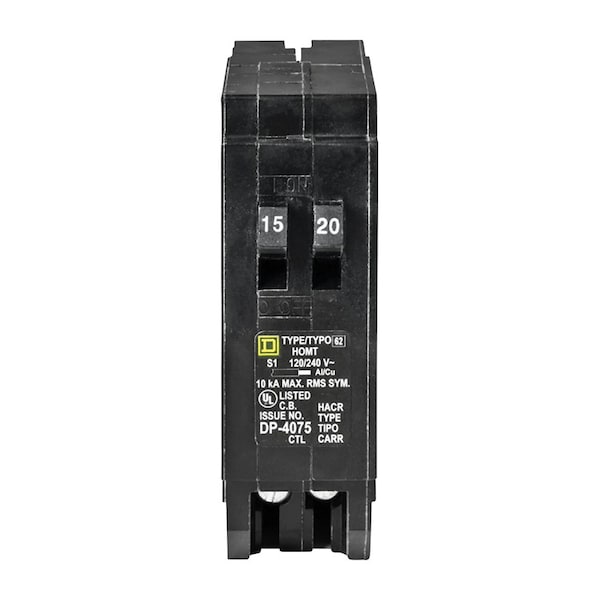

Miniature Circuit Breaker, HOMT Series, 15 to 20A, 1 Pole, 120/240V AC, 10kA
Mfr # HOMT1520CP
Zoro # G2691321
product price: $24.55
/eaKey Features
Series
HOMT
Amps
15/20 A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Tandem
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- HOMT1520CP
- Zoro #
- G2691321
- UPC #
- 47569403750
- Country of Origin
- Mexico
Dimensions
- Width
- 1 in
- Depth
- 2.98 in
- Height
- 3.13 in
- Min. Wire Size
- 14 AWG (Cu/Al)
- Max. Wire Size
- 8 AWG (Cu/Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- HOMT
- Amps
- 15/20 A
- Number of Poles
- 1
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Tandem
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Thermal Magnetic
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Standards
- UL Listed
- Features
- Mercury Free
- Application
- HACR rated Applications
Description
The Square D by Schneider Electric Homeline Single-Pole Tandem Circuit Breaker consists of (1) single-pole, 15 Amp and (1) single-pole, 20 Amp breaker. Requiring only 1 pole space, it is used for overload and short-circuit protection of your electrical system. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
- • This breaker is compatible with Homeline load centers and CSED devices
- • The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class
- • AWG 14...AWG 8 for 1 cable(s) (aluminium/copper)
- • HACR rated
- •
