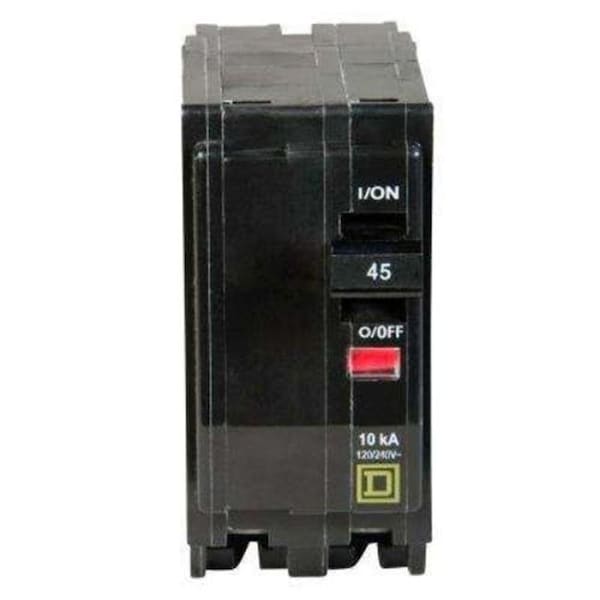

Miniature Circuit Breaker, QO Series, 45A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
- Mfr # QO245CP
- Zoro # G103900396
product price:Â
$
55.15
/ea
Key Features
Series
QO
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- QO245CP
- Zoro #
- G103900396
- UPC #
- 785901541905
- Country of Origin
- China
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 45 A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120/240V AC
- Trip Type
- Thermal Magnetic
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Features
- Mercury Free
- Standards
- UL Listed, CSA
- Interrupt Rating
- 10 kA at 120/240V AC
- Application
- HACR rated Applications
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 45 A, 120/240 V, and 2 pole. This unit provides 10 kA breaking capacity and plug in mounting. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also QO breakers use a compact 3/4 inch width design for small system footprint.
Features- Miniature circuit-breaker
- Voltage: 120 & 240V
- Ampere: 45A
- Weight: 0.26 lbs
