- Item

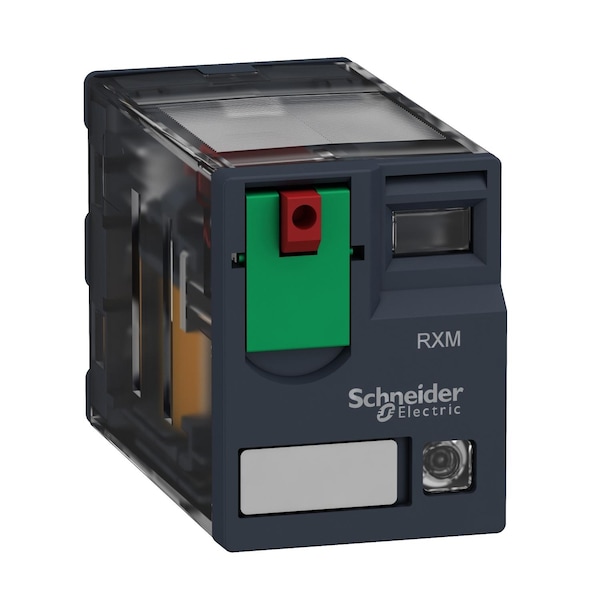

- Miniature plug-in relay,10 A,3 CO,LED
- Mounting Style
- Socket
- Coil Voltage
- 230V AC
- Current Rating
- 10 A
- Contact Rating (AC)
- 10 A @ 250V
- Contact Rating (DC)
- 10 A @ 28V
- Contact Material
- AgNi
- Power Consumption - Relay
- 1.2 VA
- Standards
- CSA C22.2 No 14; EN/IEC 61810-1 508; GOST; Lloyd's; CE
- Features
- Lockable Test Button; Status LED
- Series
- RXM; Miniature
- Pin Shape
- flat
- Coil Resistance
- 15000 Ohm
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact; 2000 V AC between poles
- Protection Category
- RT I
- Operating Temp. Range
- -40-55°C
- Switching Power
- Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V
- Operating Time
- 20 ms
- Switching Voltage
- 250 V IEC
- Utilisation Coefficient
- 0.2
- Ambient Air Temperature For Operation
- -40-55°C
- [Ui] Rated Insulation Voltage
- 250 V IEC, 300 V CSA, 300 V UL
- Device Presentation
- complete product
- Drop-Out Voltage Threshold
- >= 0.15 Uc
- Shock Resistance
- 10 gnin operation, 30 gnnot operating
- Device Short Name
- RXM
- Series Name
- Miniature
- Average Resistance
- 15000 Ohm 20°C +/- 15 %
- Load Current
- 10 A 250 V AC, 10 A 28 V DC
- Operating Rate
- <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
- Average Coil Consumption In VA
- 1.2-1.2 60 Hz
- Maximum Switching Capacity
- 2500 VA/280 W
- Pollution Degree
- 2
- Test Levels
- level A group mounting
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50µs
- Continuous Output Current
- 6.7 A
- Operating Position
- any position
- Ip Degree of Protection
- IP40 conforming to IEC 60529
- Control Type
- lockable test button
- Ambient Air Temperature For Storage
- -40-85°C
- Electrical Durability
- 100000 cycles resistive
- Average Consumption
- 1.2 VA 60 Hz
- Rated Operational Voltage Limits
- 184...253 V AC
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
- Mechanical Durability
- 10000000 cycles
- Status Indicator
- LED Indicator
- Number of Pins
- 11
- Base Shape
- Square
- Electrical Connection
- Plug In
- Contact Form
- 3PDT
