- Item

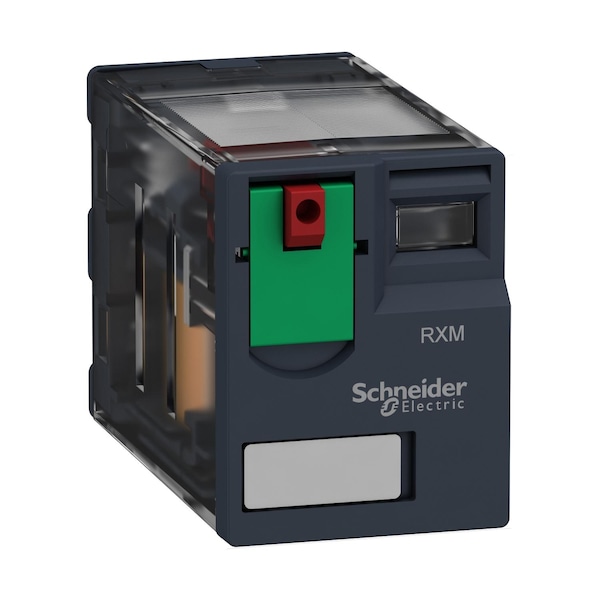

- Miniature plug-in relay,12 A,2 CO,48
- Mounting Style
- Socket
- Coil Voltage
- 48V AC
- Current Rating
- 12 A
- Contact Rating (AC)
- 12 A @ 250V AC (NO), 6 A @ 250V AC(NC), 12 A @ 277V AC
- Contact Rating (DC)
- 12 A @ 28V DC (NO), 6 A @ 28V DC (NC)
- Standards
- EN/IEC 61810-1 508; CSA C22.2 No 14; GOST; Lloyd's; CE
- Power Consumption - Relay
- 1.2 VA
- Features
- Lockable Test Button
- Contact Material
- AgNi
- Series
- RXM; Miniature
- Protection Category
- RT I
- Switching Voltage
- 250 V IEC
- Switching Power
- Max 3000 VA/336 W; Min 170 mW 10 mA, 17 V
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation
- Operating Temp. Range
- -40-55°C
- Coil Resistance
- 710 Ohm
- Operating Time
- 20 ms
- Pin Shape
- flat
- Continuous Output Current
- 10A
- Maximum Switching Capacity
- 3000 VA/336 W
- Ip Degree of Protection
- IP40 conforming to IEC 60529
- Average Coil Consumption In VA
- 1.2-1.2 60 Hz
- Rated Operational Voltage Limits
- 38.4...52.8 V AC
- Ambient Air Temperature For Operation
- -40-55°C
- Device Presentation
- complete product
- Utilisation Coefficient
- 0.2
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50µs
- Average Consumption
- 1.2 VA 60 Hz
- Pollution Degree
- 3
- Load Current
- 12 A 250 V AC, 12 A 28 V DC
- [Ui] Rated Insulation Voltage
- 250 V IEC, 300 V CSA, 300 V UL
- Operating Rate
- <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
- Mechanical Durability
- 10000000 cycles
- Series Name
- Miniature
- Device Short Name
- RXM
- Operating Position
- any position
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Drop-Out Voltage Threshold
- >= 0.15 Uc
- Shock Resistance
- 10 gnin operation, 30 gnnot operating
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
- Test Levels
- level A group mounting
- Average Resistance
- 710 Ohm 20°C +/- 15 %
- Ambient Air Temperature For Storage
- -40-85°C
- Electrical Durability
- 100000 cycles resistive
- Status Indicator
- No Indicator
- Contact Form
- DPDT
- Number of Pins
- 8
- Base Shape
- Square
- Electrical Connection
- Screw, Push-in
