- Item

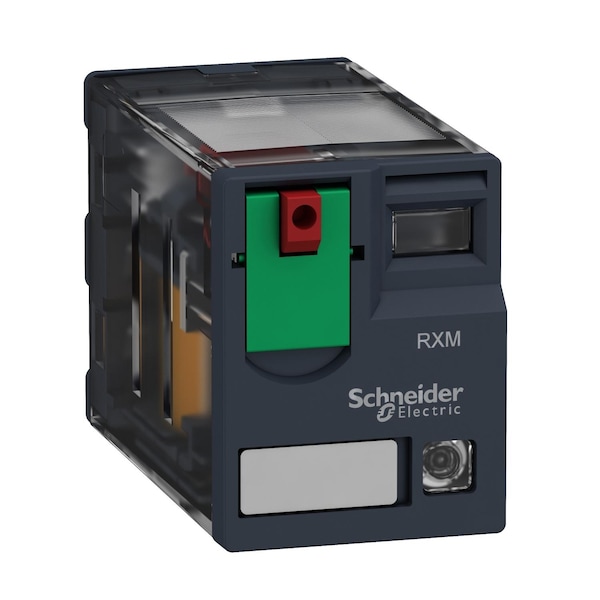

- Miniature Plug-in relay - Zelio RXM 4 C/
- Coil Voltage
- 24V AC
- Current Rating
- 3 A
- Contact Rating (AC)
- 3 A @ 250V
- Contact Rating (DC)
- 3 A @ 28V
- Standards
- EN/IEC 61810-1; CSA C22.2 No 14; UL 508; CE; Lloyd's; GOST
- Features
- Lockable Test Button; Status LED
- Power Consumption - Relay
- 1.2 VA
- Contact Material
- Gold Plated Bifurcated Silver
- Coil Resistance
- 180 Ohm
- Switching Power
- Max 750 VA/84 W; Min 15 mW 3 mA, 5 V
- Protection Category
- RT I
- Switching Voltage
- 250 V IEC
- Operating Time
- 20 ms
- Pin Shape
- flat
- Series
- RXM; Miniature
- Operating Temp. Range
- -40-55°C
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact; 2000 V AC between poles
- Vibration Resistance
- 3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 5 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating
- Rated Insulation Voltage
- 250 V IEC; 300 V CSA; 300 V UL
- Utilisation Coefficient
- 0.2
- Ambient Air Temperature For Operation
- -40 to 131°F (-40 to 55°C)
- Average Coil Consumption in VA
- 1.2 60 Hz
- Series Name
- Miniature
- Resistive Rated Load
- 3 A 250 V AC; 3 A 28 V DC
- Device Presentation
- Complete product
- Minimum Switching Capacity
- 15 mW 3 mA, 5 V
- Pollution Degree
- 2
- Operating Rate
- Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
- Shock Resistance
- 10 gnin operation; 30 gnnot operating
- Conventional Enclosed Thermal Current
- 3 A -40 to 131°F (-40 to 55°C)
- Ambient Air Temperature For Storage
- -40 to 185°F (-40 to 85°C)
- Maximum Switching Capacity
- 750 VA/84 W
- Product Certifications
- UL; CE; CSA; Lloyd's; GOST
- Average Coil Resistance
- 180 Ohm 20°C +/- 15%
- Rated Operational Voltage Limits
- 19.2 to 26.4 V AC
- Mechanical Durability
- 10000000 cycles
- IP Degree Of Protection
- IP40 conforming to IEC 60529
- Rated Impulse Withstand Voltage
- 2.5 kV 1.2/50 µs
- Test Levels
- Level A group mounting
- Control Circuit Voltage
- 24 V AC 50/60 Hz
- Control Type
- Lockable test button
- Electrical Durability
- 100000 cycles resistive depending on mounting position and working environment
- Operating Position
- Any position
- Average Consumption
- 1.2 VA 60 Hz
- Drop-Out Voltage Threshold
- Greater than or Equal to 0.15 Uc
- Load Current
- 3 A 250 V AC, 3 A 28 V DC
- [Ithe] Conventional Enclosed Thermal Current
- 3 A -40-55°C
- Device Short Name
- RXM
- [Ui] Rated Insulation Voltage
- 250 V IEC, 300 V CSA, 300 V UL
- Average Resistance
- 180 Ohm 20°C +/- 15 %
- Status Indicator
- LED Indicator
- Number of Pins
- 14
- Electrical Connection
- Screw, Push-in
- Base Shape
- Square
- Contact Form
- 4PDT
- Mounting Style
- Socket
