  8. Monolithic emergency stop, Harmony XB7, plastic, red mushroom 40mm, 22mm, latching turn to release, 1NO+1NC

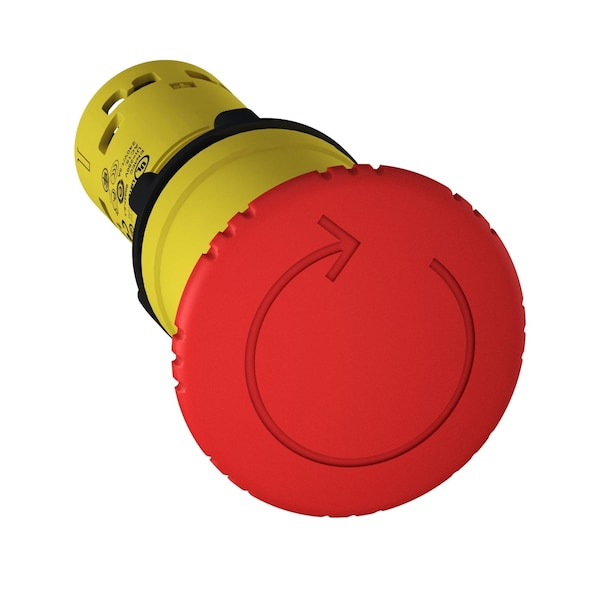

Schneider Electric Monolithic emergency stop, Harmony XB7, plastic, red mushroom 40mm, 22mm, latching turn to release, 1NO+1NC XB7NS8445 - main

Monolithic emergency stop, Harmony XB7, plastic, red mushroom 40mm, 22mm, latching turn to release, 1NO+1NC

  • Mfr # XB7NS8445

  • Zoro # G7655315

product price:  $71.49
/ea
Sold in multiples of 10 for $714.90

Key Features

Standards
EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60364-5-53 || EN/IEC 60204-1 || EN/ISO 13850
Contacts Usage
standard
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Device Short Name
XB7
Positive Opening
with EN/IEC 60947-5-1 appendix K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB7NS8445
Zoro #
G7655315
UPC #
-
Country of Origin
India

Dimensions

Cad Overall Depth
72 mm
Mounting Diameter
22 mm
Cad Overall Width
40 mm
Cad Overall Height
40 mm

Details

Item
Estop Ttr 1N/O1N/C
Standards
EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60364-5-53 || EN/IEC 60204-1 || EN/ISO 13850
Contacts Usage
standard
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Device Short Name
XB7
Positive Opening
with EN/IEC 60947-5-1 appendix K
Operator Profile
red mushroom Ø 40 mm, unmarked
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Electrical Durability
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Reliability
λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Contacts Type And Composition
1 NO + 1 NC
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Device Presentation
monolithic product
Tightening Torque
0.8-1.2 N.m EN 60947-1
Protective Treatment
TH
Reset
turn to release
Short-Circuit Protection
4 A cartridge fuse gG EN/IEC 60947-5-1
Type Of Operator
mechanical latching
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Product Or Component Type
emergency stop push-button
Ambient Air Temperature For Operation
-25-70°C
Shock Resistance
15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Nema Degree Of Protection
NEMA 12 UL 50 || NEMA 3 UL 50
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Product Certifications
GOST || CCC
Electrical Shock Protection Class
class II IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Shape Of Signaling Unit Head
round
Mechanical Durability
100000 cycles
Contact Operation
snap action
[Ie] Rated Operational Current
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1 || 1.5 A 120 V, AC-15, C300 EN/IEC 60947-5-1
Range of Product
Harmony XB7

Description

This Harmony XB7, Emergency stop 40mm mushroom head monolithic red push button operates with a latched-turn-to-release mechanism and screw clamp terminals. This emergency stop is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
