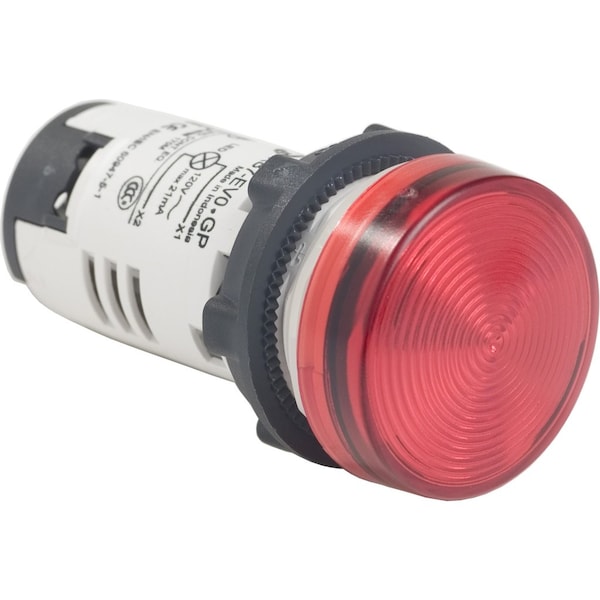

Monolithic pilot light, Harmony XB7, plastic, red, 22mm, integral LED, 110.120V AC

  • Mfr # XB7EV04GP
  • Zoro # G610087863
product price:
$
25.69
/ea

Key Features

Lamp Type
LED
Electrical Connection
Screw Clamp Terminals
Body Material
Plastic
IP Rating
IP20, IP65
Average Life
70,000 hr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB7EV04GP
Zoro #
G610087863
UPC #
3389119022798
Country of Origin
Indonesia

Dimensions

Width
29 mm
Height
29 mm
Mounting Diameter
22 mm
Depth
54 mm
Overall Depth
2.13 in
Overall Width
1.14 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm
Overall Height
1.14 in

Details

Item
Panel Indicator Lights
Lamp Type
LED
Electrical Connection
Screw Clamp Terminals
Body Material
Plastic
IP Rating
IP20, IP65
Average Life
70,000 hr
Standards
CSA C22.2 No 14, IEC 55011, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 60536, IEC 60947-1, IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 50 E, UL 508
Ambient Air Temperature For Storage
-40-70°C
Device Presentation
monolithic product
Ambient Air Temperature For Operation
-25-70°C
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Cap/Operator or Lens Colour
red
Service Life
70000 h at rated voltage and 25°C
Terminals Description Iso N°1
(X1-X2)PL
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Product or Component Type
pilot light
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Supply Voltage Limits
100-132 V AC
Shock Resistance
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Light Source
LED
[Us] Rated Supply Voltage
120 V AC 50/60 Hz
Shape of Screw Head
cross JIS No 1, cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Protective Treatment
TH
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Signalling Type
steady
Current Consumption
18...21 mA
Overvoltage Category
class II IEC 60536
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
Bulb Base
integral LED
Shape of Signaling Unit Head
round
Range of Product
Harmony XB7
Ip Degree of Protection
IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
Electromagnetic Compatibility
disturbing field emission class B conforming to IEC 55011
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Device Short Name
XB7
Nema Degree of Protection
NEMA 4 UL 50 E, NEMA 12 UL 50 E
Includes Lamp Module
Lamp Module Included
Voltage Rating - Maximum
132 V AC
Series
XB7
Includes Lens
Lens Included
NEMA Enclosure Rating
12, 4
Lens Color
Red

Description

Panel Indicator Lights, LED, Electrical Connection Screw Clamp Terminals, Average Life 70,000 hr, IP Rating IP20, IP65, Standards CSA C22.2 No 14, IEC 55011, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 60536, IEC 60947-1, IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 50 E, UL 508
