- Item

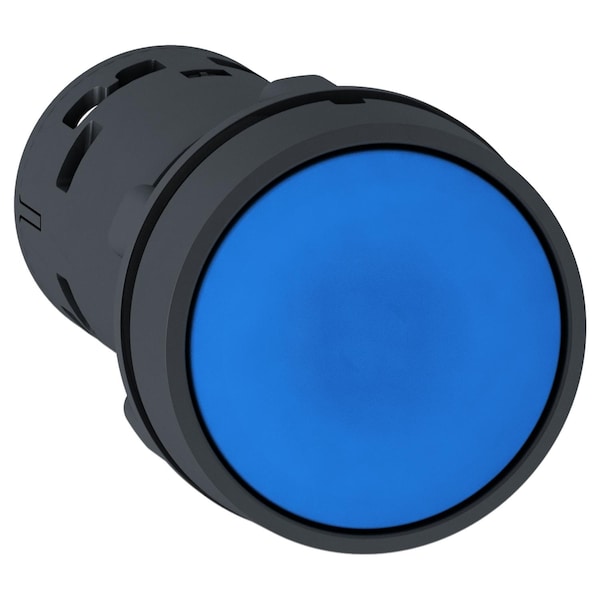

- Push Button Operator
- Push Button Style
- Flush
- Action
- Momentary
- Operator Illumination
- Non-Illuminated
- Head Color
- Blue
- Head Material
- Plastic
- Terminal Connection
- Screw Clamp
- Standards
- CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-1, UL 508, JIS C8201-1
- Mechanical Durability
- 1000000 cycles
- Electrical Durability
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
- Operator Profile
- blue flush, unmarked
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- Device Presentation
- monolithic product
- Type Of Operator
- spring return
- Contact Operation
- slow-break
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Device Short Name
- XB7
- [Ie] Rated Operational Current
- 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Overvoltage Category
- class II IEC 61140
- Ambient Air Temperature For Operation
- -25-70°C
- Shock Resistance
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Short-Circuit Protection
- 4 A cartridge fuse gG EN/IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Product Or Component Type
- push-button
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
- Shape Of Signaling Unit Head
- round
- Nema Degree Of Protection
- NEMA 12 UL 50 E || NEMA 3 UL 50 E
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Contacts Type And Composition
- 1 NO + 1 NC
- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Ambient Air Temperature For Storage
- -40-70°C
- Electrical Reliability
- Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4
- Positive Opening
- with NC contact EN/IEC 60947-5-1 appendix K
- Product Certifications
- CCC || GOST
- Protective Treatment
- TH
- Rated Operational Current
- 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1; 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1; 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
- Terminals Description ISO n°1
- (21-22)NC; (13-14)NO
- Range of Product
- Harmony XB7
