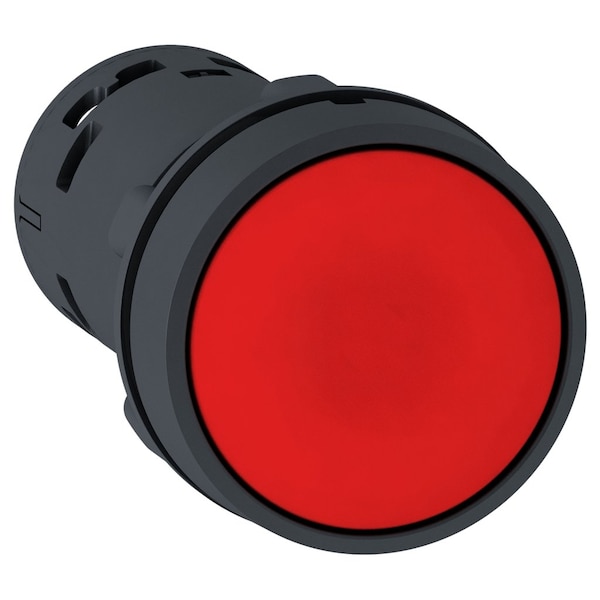

  12. /
  13. Push Button Operator Switches
  14. /
  15. Monolithic push button, Harmony XB7, plastic, red, 22mm, spring return, unmarked, 1NC
Schneider Electric Monolithic push button, Harmony XB7, plastic, red, 22mm, spring return, unmarked, 1NC XB7NA42 - main

Monolithic push button, Harmony XB7, plastic, red, 22mm, spring return, unmarked, 1NC

  • Mfr # XB7NA42

  • Zoro # G7656137

product price: $18.65
/ea
Sold in multiples of 10 for $186.50

Key Features

Push Button Style
Flush
Action
Maintained
Panel Cutout Diameter
22 mm
Head Color
Red
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB7NA42
Zoro #
G7656137
UPC #
-
Country of Origin
India

Dimensions

Panel Cutout Diameter
22 mm
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Cad Overall Depth
51.5 mm
Cad Overall Width
29 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Maintained
Head Color
Red
Terminal Connection
Screw Clamp
Standards
UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
Device Presentation
monolithic product
Shock Resistance
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Positive Opening
with NC contact EN/IEC 60947-5-1 appendix K
Electrical Durability
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Mechanical Durability
1000000 cycles
Shape Of Signaling Unit Head
round
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Product Or Component Type
push-button
Nema Degree Of Protection
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Terminals Description Iso N°1
(11-12)NC
Tightening Torque
0.8-1.2 N.m EN 60947-1
Operator Profile
red flush, unmarked
Short-Circuit Protection
4 A cartridge fuse gG EN/IEC 60947-5-1
Ambient Air Temperature For Operation
-25-70°C
Type Of Operator
spring return
Protective Treatment
TH
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Contacts Type And Composition
1 NC
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Overvoltage Category
class II IEC 61140
Device Short Name
XB7
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
[Ie] Rated Operational Current
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
GOST || CCC
Contact Operation
slow-break
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Electrical Reliability
Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Range of Product
Harmony XB7

Description

Pb - Spring Rtn Red - 1Nc
