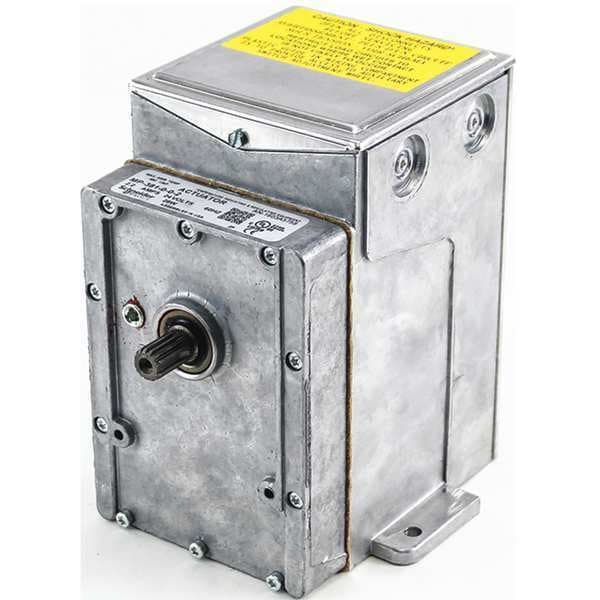

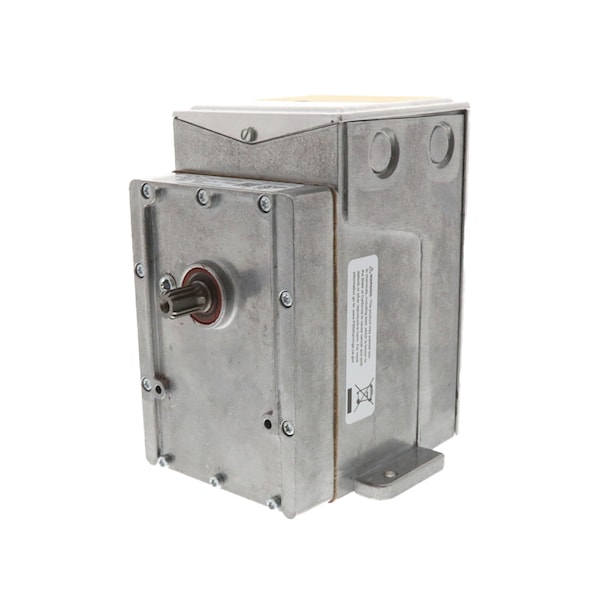

Schneider Electric Motor, 24V, 130 sec. with Switch MP-381 - main

Motor, 24V, 130 sec. with Switch

  • Mfr # MP-381

  • Zoro # G2492747

product price:  $1,139.99
/ea
Free Shipping & Returns

Key Features

For Use With
Dampers, Valves or Program Switches in HVAC Systems and Similar Applications
Voltage
24V
Features
Temperature Limits
Standards
CSA, EMC Directives (89/336/EEC and 92/31/EEC), Low Voltage Directive (72/23/EEC), UL 29291, UL 873
Signal Type
Proportional
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MP-381
Zoro #
G2492747
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Width
5 3/8 in
Overall Depth
8 1/8 in
Overall Height
7 in

Details

Item
Motor, 24V, 130 sec. with Switch
For Use With
Dampers, Valves or Program Switches in HVAC Systems and Similar Applications
Voltage
24V
Features
Temperature Limits
Standards
CSA, EMC Directives (89/336/EEC and 92/31/EEC), Low Voltage Directive (72/23/EEC), UL 29291, UL 873
Signal Type
Proportional
Application
HVAC Systems
Spring Return
Non-Spring Return
Full Load Current
2.2 A
Rated Torque
220 lb-in
NEMA Rating
4
Input Voltage
24V
Housing Material
Aluminum
Contact Form
SPDT
Valve Application
Damper
Electrical Connection Type
Screw Terminals
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
136 Degrees F

Description

Damper Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 220 lb-in, Input Voltage 24V, Contact Form SPDT, Electrical Connection Type Screw Terminals, NEMA Rating 4, Spring Return Non-Spring Return, Maximum Operating Temperature 136 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 3/8 in, Application HVAC Systems
