  7. Multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s.10 h, power on delay, symmetrical flashing, 24V DC or 24.240V AC DC

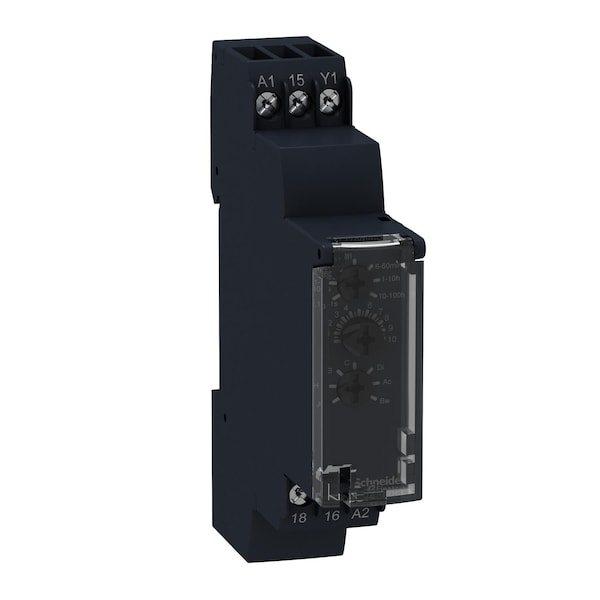

Schneider Electric Multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s.10 h, power on delay, symmetrical flashing, 24V DC or 24.240V AC DC RE17RMMU - main

Multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s.10 h, power on delay, symmetrical flashing, 24V DC or 24.240V AC DC

  • Mfr # RE17RMMU

  • Zoro # G7123993

product price:  $74.85
/ea

Key Features

Standards
2006/95/EC || 2004/108/EC || IEC 61812-1 || EN 61000-6-2 || EN 61000-6-3 || EN 61000-6-4 || EN 61000-6-1
Height
90 mm
Depth
72 mm
Width
17.5 mm
Creepage Distance
4 kV/3 IEC 60664-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RE17RMMU
Zoro #
G7123993
UPC #
-
Country of Origin
Indonesia

Dimensions

Height
90 mm
Depth
72 mm
Width
17.5 mm

Details

Item
Ten Function Timer,240V,8A
Standards
2006/95/EC || 2004/108/EC || IEC 61812-1 || EN 61000-6-2 || EN 61000-6-3 || EN 61000-6-4 || EN 61000-6-1
Creepage Distance
4 kV/3 IEC 60664-1
Maximum Power Consumption In W
0.6 W 24 V DC
[Us] Rated Supply Voltage
24...240 V AC 50/60 Hz || 24 V DC
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2/50µs
Housing Material
self-extinguishing
Time Delay Type
A, Ac, At, B, Bw, C, D, Di, H, Ht, power on-delay || on-delay and off-delay || interval || off-delay || symmetrical flashing
Ambient Air Temperature For Operation
-20-60°C
Immunity To Microbreaks
20 ms
Tightening Torque
0.6-1 N.m IEC 60947-1
Mounting Support
35 mm DIN rail conforming to EN/IEC 60715
On-Load Factor
1
Maximum Switching Current
8 A AC/DC
Impulse Duration
100 ms with load in parallel typical || 30 ms typical
Ip Degree Of Protection
IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Reset Time
120 ms on de-energisation typical
Voltage Drift
+/- 0.2 %/V
Input Voltage
10 V
Shock Resistance
15 gn 11 ms IEC 60068-2-27
Compatibility Code
RE17
Minimum Switching Current
10 mA 5 V DC
Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4 || 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5 || 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5 || conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11 || voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11 || conducted and radiated emissionsclass B EN 55022
Breaking Capacity
2000 VA
Ambient Air Temperature For Storage
-30-60°C
Voltage Range
0.85...1.1 Us
Mounting Position
any position in relation to normal vertical mounting plane
Power Consumption In Va
0-32 VA 240 V AC
Contacts Material
cadmium free
Time Delay Range
6...60 min || 1...10 h || 0.1...1 s || 1...10 s || 1...10 min || 10...100 h || 6...60 s
Maximum Delay Response
100 ms
Discrete Output Type
relay
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Functionality
multifunction
Operating Rate In Hz
10 Hz
Mechanical Durability
10000000 cycles
Setting Accuracy Of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Control Type
selector switch front panel
Device Short Name
RE17R
Electrical Durability
100000 cycles resistive 8 A 250 V AC
Relative Humidity
93-93 % without condensation IEC 60068-2-30
Contacts Type And Composition
1 C/O
Supply Frequency
50...60 Hz +/- 5 %
Product Certifications
CSA || GL || cULus
Local Signalling
LED indicator on steady: relay energised, no timing in progress || LED indicator 80 % ON and 20 % OFF flashing: timing in progress || LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Product Or Component Type
multifunction relay
Maximum Switching Voltage
250 V AC
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Temperature Drift
+/- 0.05 %/°C
Nominal Output Current
8A
Marking
CE
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Range of Product
Harmony Timer Relays
Number of Functions
10

Description

Ten Function Timer,240V,8A
