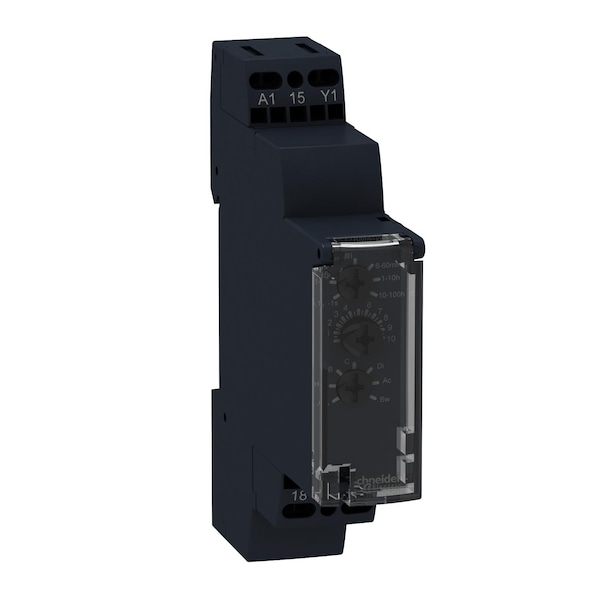

Multifunction Time Delay Relay, Interval, Off/On Delay, Symmetrical Flashing, 1 Functions

  • Mfr # RE17RMMW
  • Zoro # G5956910
product price:
$
80.99
/ea

Key Features

Delay Function
Interval, Off/On Delay, Symmetrical Flashing
Number of Delay Functions
5
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Number of Pins
11
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RE17RMMW
Zoro #
G5956910
UPC #
-
Country of Origin
Indonesia
Item
Multifunction Time Delay Relay
Delay Function
Interval, Off/On Delay, Symmetrical Flashing
Number of Delay Functions
5
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Number of Pins
11
Coil Voltage
12 to 240V AC/DC
Current Rating
8 A
Contact Rating (AC)
10 A @ 240V AC
Contact Rating (DC)
10 A @ 30V
Contact Material
cadmium free
Adjustment Method - Timer
selector switch front panel
Input or Control Voltage Range
0.85...1.1 Us
Standards
cULus|| CSA
Electrical Connection
35 mm DIN rail conforming to EN/IEC 60715
Input Voltage
250 V
Power Consumption - Relay
0-3 VA 240 V AC; 1.5 W 240 V DC
Number of Functions
10
Type of Output
relay
Hz
50/60 Hz
Reset Time
120 ms on de-energisation typical
Maximum Delay Response
100 ms
Shock Resistance
15 gn 11 ms IEC 60068-2-27
Device Short Name
RE17R
Functionality
multifunction
Compatibility Code
RE17
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Marking
CE
Mounting Support
35 mm DIN rail conforming to IEC 60715
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Ip Degree of Protection
IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Time Delay Type
power on-delay, on-delay and off-delay, interval, off-delay, symmetrical flashing
Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2/50µs
Ambient Air Temperature For Operation
-20-60°C
Mounting Position
any position in relation to normal vertical mounting plane
Operating Rate In Hz
10 Hz
Impulse Duration
100 ms with load in parallel typical, 30 ms typical
Ambient Air Temperature For Storage
-30-60°C
Housing Material
self-extinguishing
Immunity To Microbreaks
20 ms
Mechanical Durability
10000000 cycles
Tightening Torque
0.6-1 N.m IEC 60947-1
Nominal Output Current
8A
Maximum Power Consumption In W
1.5 W 240 V DC
Temperature Drift
+/- 0.05 %/°C
Electrical Durability
100000 cycles resistive 8 A 250 V AC
Range of Product
Harmony Timer Relays
Creepage Distance
4 kV/3 IEC 60664-1
[Us] Rated Supply Voltage
12...240 V AC/DC 50/60 Hz
Maximum Switching Voltage
250 V AC
Breaking Capacity
2000 VA
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
On-Load Factor
1
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Relative Humidity
93-93 % without condensation IEC 60068-2-30
Maximum Switching Current
8 A AC/DC
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Local Signalling
LED indicator on steady: relay energised, no timing in progress, LED indicator 80 % ON and 20 % OFF flashing: timing in progress, LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Voltage Drift
+/- 0.2 %/V
Minimum Switching Current
10 mA 5 V DC
Supply Frequency
50...60 Hz +/- 5 %
Contact Form
SPDT

Description

Ten Function Timer,240V,8A
