Item

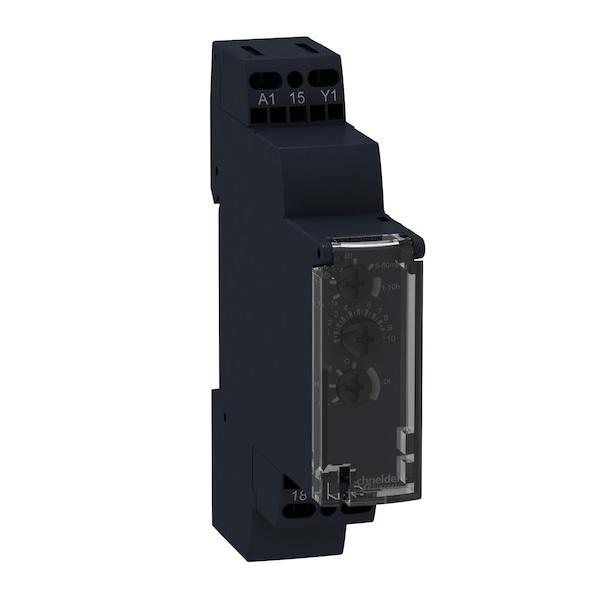

Multifunction Time Delay Relay
Delay Function
Interval, Off/On Delay, Symmetrical Flashing
Number of Delay Functions
8
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Coil Voltage
24 to 240V AC/DC
Power Consumption - Relay
0-32 VA 240 V AC; 0.6 W 24 V DC
Electrical Connection
35 mm DIN rail conforming to EN/IEC 60715
Contact Material
cadmium free
Adjustment Method - Timer
selector switch front panel
Input or Control Voltage Range
0.85...1.1 Us
Maximum Power Consumption In W
0.6 W 24 V DC
Ip Degree of Protection
IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Mounting Position
any position in relation to normal vertical mounting plane
Functionality
multifunction
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2/50µs
Immunity To Microbreaks
20 ms
[Us] Rated Supply Voltage
24...240 V AC 50/60 Hz, 24 V DC
Maximum Switching Current
8 A AC/DC
Breaking Capacity
2000 VA
Minimum Switching Current
10 mA 5 V DC
Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
Ambient Air Temperature For Operation
-20-60°C
Maximum Delay Response
100 ms
Time Delay Type
power on-delay, interval, off-delay, symmetrical flashing
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Housing Material
self-extinguishing
Relative Humidity
93-93 % without condensation IEC 60068-2-30
Temperature Drift
+/- 0.05 %/°C
Creepage Distance
4 kV/3 IEC 60664-1
Mechanical Durability
10000000 cycles
Supply Frequency
50...60 Hz +/- 5 %
Local Signalling
LED indicator on steady: relay energised, no timing in progress, LED indicator 80 % ON and 20 % OFF flashing: timing in progress, LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Impulse Duration
100 ms with load in parallel typical, 30 ms typical
Voltage Drift
+/- 0.2 %/V
Reset Time
120 ms on de-energisation typical
Tightening Torque
0.6-1 N.m IEC 60947-1
Shock Resistance
15 gn 11 ms IEC 60068-2-27
Maximum Switching Voltage
250 V AC
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Range of Product
Harmony Timer Relays
Nominal Output Current
8A
Operating Rate In Hz
10 Hz
Mounting Support
35 mm DIN rail conforming to IEC 60715
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Electrical Durability
100000 cycles resistive 8 A 250 V AC
Ambient Air Temperature For Storage
-30-60°C
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
