  13. Multifunction Time Delay Relay, Octal, 10 Functions 12 to 240V AC/DC, SPDT

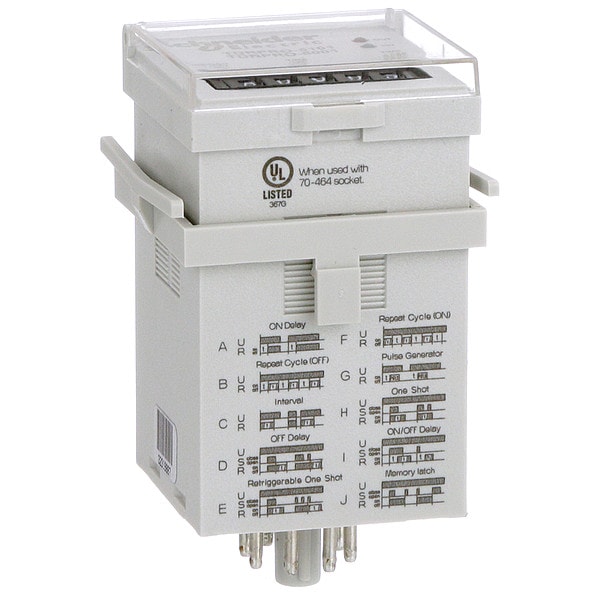

Schneider Electric Multifunction Time Delay Relay, Octal, 10 Functions 12 to 240V AC/DC, SPDT TDRPRO-5101 - main

Multifunction Time Delay Relay, Octal, 10 Functions 12 to 240V AC/DC, SPDT

  • Mfr # TDRPRO-5101

  • Zoro # G0498671

product price: $137.99
/ea
Free Shipping & Returns

Key Features

Delay Function
Interval (Power On), Memory Hold (S Make), Off Delay (S Break), On Delay (Power On), On/Off Delay (S Make/Break), One Shot, Pulse Generator, Repeat Cycle (Starting Off), Repeat Cycle (Starting On), Retriggerable One Shot
Number of Delay Functions
10
Minimum Time Setting
0.1 sec
Maximum Time Setting
9,990 hr
Base Shape
Octal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDRPRO-5101
Zoro #
G0498671
UPC #
-
Country of Origin
Czechia

Dimensions

Overall Height - Relay
3.38 in
Depth
1.88 in (47.8 mm)
Width
1.89 in (48 mm)
Overall Depth
4.73 in
Body Height
1.9 in
Body Width
1.89 in
Body Depth
4.5 in
Height
2.83 in (71.95 mm)

Details

Item
Multifunction Time Delay Relay
Delay Function
Interval (Power On), Memory Hold (S Make), Off Delay (S Break), On Delay (Power On), On/Off Delay (S Make/Break), One Shot, Pulse Generator, Repeat Cycle (Starting Off), Repeat Cycle (Starting On), Retriggerable One Shot
Number of Delay Functions
10
Minimum Time Setting
0.1 sec
Maximum Time Setting
9,990 hr
Base Shape
Octal
Number of Pins
8
Coil Voltage
12 to 240V AC/DC
Current Rating
12 A
Contact Form
SPDT
Contact Rating (AC)
12 A @ 12 to 240V
Contact Rating (DC)
12 A @ 12 to 240V
Standards
IEC 61810-1, RoHS Compliant, UL Listed
Coil Rating
2.5VA
Number of Functions
10
Status Indicator
LED
Operating Functions
1, 2, 4, 5
Contact Amp Rating (Resistive)
12A
Socket Code
A
Socket
1EGP3, 1EGP5, 5X852
Electrical Connection
Socket
Contact Material
Silver Alloy
Adjustment Method
Thumb Wheel
Input Voltage
12 to 240V AC/DC
IP Rating
IP40
Minimum Operating Temperature
14 Degrees F
Operating Time Accuracy
+/-0.1%
Mounting Style
Through Panel
Power Consumption
2.5 VA
Electrical Operating Durability
100,000
Sealing
Sealed
Maximum Operating Temperature
131 Degrees F
Frequency
50/60 Hz
Reset Method
Time-Limit Reset
Weight
4.23 oz
Mechanical Operating Durability
10,000,000
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Dielectric Strength
2500 V between input and output
Product Range
Legacy
Operating Time
25 ms
Voltage Range
0.85...1.15 Un
Mounting Support
Socket
Reset Time
150 ms maximum
Product Certifications
UL
Ambient Air Temperature for Operation
14 to 131°F (-10 to 55°C)
Power consumption in W
2 W 12...240 V
Motor Power HP
1 hp 240 V AC; 0.5 hp 120 V AC
Local Signalling
1 LED red, blinking timing in progress; 1 LED per input green
Time Delay Type
Multifunction
Repeat Accuracy
+/- 0.1 % of the measuring range
Brake Release Time
25 ms
Time Delay Range
100 ms...9990 hr in steps of 0.1 s; 100 ms...9990 hr in steps of 1 second; 100 ms...9990 hr in steps of 0.1 min; 100 ms...9990 hr in steps of 1 min; 100 ms...9990 hr in steps of 0.1 h; 100 ms...9990 hr in steps of 1 h; 100 ms...9990 hr in steps of 10 h
Rated Supply Voltage
12...240 V AC/DC 50...60 Hz
Control Type
Dial front
Rated Operational Current
12 A at 120 V AC (on resistive load); 12 A at 240 V AC (on resistive load); 12 A at 30 V DC (on resistive load)

Description

Multi-Function Time Delay Relay, Adjustment Method Thumb Wheel, Base Shape Octal, Coil Voltage 12 to 240V AC/DC, Contact Form SPDT, Contact Rating (AC) 12 A @ 12 to 240V, Contact Rating (DC) 12 A @ 12 to 240V, Current Rating 12 A, Number of Delay Functions 10, Delay Function Interval (Power On), Memory Hold (S Make), Off Delay (S Break), On Delay (Power On), On/Off Delay (S Make/Break), One Shot, Pulse Generator, Repeat Cycle (Starting Off), Repeat Cycle (Starting On), Retriggerable One Shot
