Shop SCHNEIDER ELECTRIC

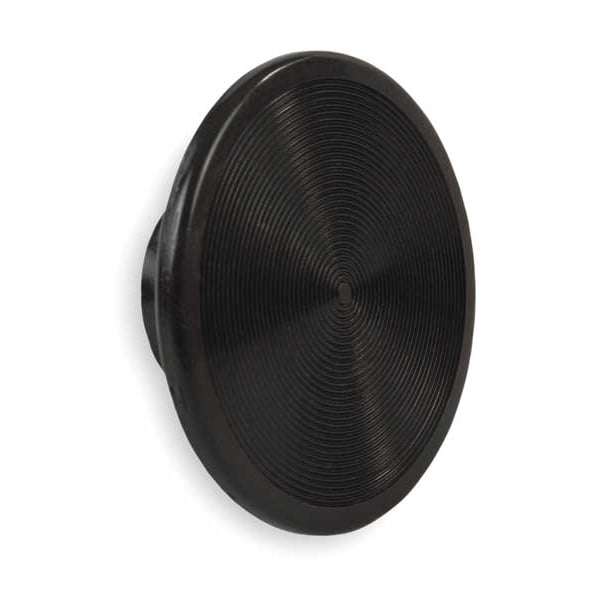

Mushroom Head, 30 mm, Black

  • Mfr # 9001K93B
  • Zoro # G2958051
product price:
$
50.15
/ea

Key Features

Push Button Style
Mushroom Head
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Black
Head Material
Plastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001K93B
Zoro #
G2958051
UPC #
785901174059
Country of Origin
Korea, Republic of

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
35 mm
Operator Size
2.25 in dia
Size
30 mm
Width
40 mm
Depth
116 mm
Height
40 mm
Overall Depth
4.57 in
Overall Width
1.57 in
Overall Height
1.57 in
Manufacturer Warranty Length
18 mo
Mounting Diameter
30 mm

Details

Item
Push Button Head
Push Button Style
Mushroom Head
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/ISO 13850, JIS C4520, JIS C852, UL 508
Basic Material
Plastic
Color
Black
For Use With
Schneider Push Buttons KR25 and SKR25 Series
NEMA Rating
1, 12, 3R, 4, 4X
Connection Type
Screw-On
IP Rating
IP66
Illuminated / Non-Illuminated
Non-Illuminated
Compatible with Brand
Square D
Compatible with Series
9001K, 9001SK
Head Style
Mushroom Head
Compatible Operator Illumination
Non-Illuminated
Device Short Name
9001K
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-25-70°C
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529
Protective Treatment
TC
Overvoltage Category
class II IEC 61140
Cap/Operator Or Lens Colour
black
Operator Profile
black mushroom Ø 35 mm
Product Or Component Type
mushroom button
Device Presentation
basic element
Shape Of Signaling Unit Head
round
Accessory / Separate Part Destination
push-button
Shock Resistance
50 gn IEC 60068-2-27
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Operating Position
any position
Product Certifications
NEMA || UL 508
Mechanical Durability
5000000 cycles
Compatible Series
9001K, 9001SK

Description

Mushroom Head, Operator Size 2.25 in dia, Color Black, For Use With Schneider Push Buttons KR25 and SKR25 Series, Size 30 mm, Basic Material Plastic, Non-Illuminated, Head Material Plastic, Connection Type Screw-On, NEMA Rating 1, 12, 3R, 4, 4X, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/ISO 13850, JIS C4520, JIS C852, UL 508
