Shop SCHNEIDER ELECTRIC

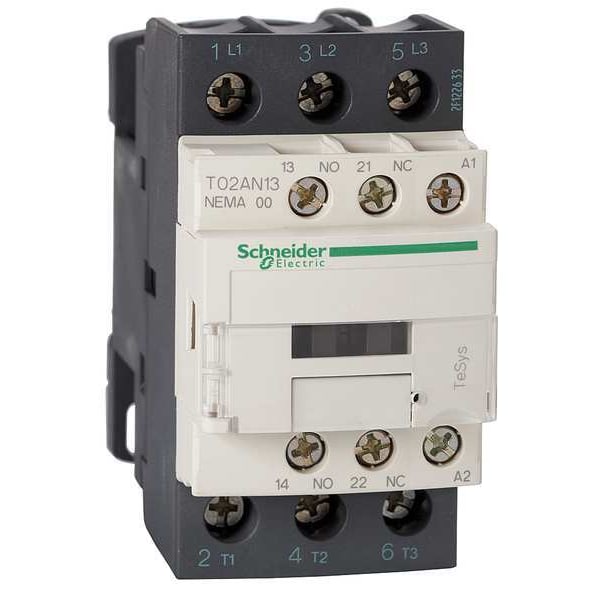

NEMA Magnetic Contactor, 9A, 24VAC, NEMA 00

  • Mfr # T02AN13B7

  • Zoro # G0103562

product price:  $181.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
9 A
Action
Nonreversing
Number of Poles
3
NEMA Contactor Size
00
Coil Volts
24V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T02AN13B7
Zoro #
G0103562
UPC #
785901126812
Country of Origin
France

Dimensions

NEMA Contactor Size
00
Height
3.35 in
Width
1.77 in
Depth
3.62 in
NEMA Size
00
Overall Depth
3.66 in
Overall Height
3.34 in
Overall Width
1.76 in

Details

Item
NEMA Magnetic Contactor
Full Load Amps
9 A
Action
Nonreversing
Number of Poles
3
Coil Volts
24V AC
Reversing
No
HP @ 1 Phase - 120V
1/3 hp
HP @ 1 Phase - 240V
1 hp
HP @ 3 Phase - 208V
1 1/2 hp
HP @ 3 Phase - 240V
1 1/2 hp
HP @ 3 Phase - 575V
2 hp
HP @ 3 Phase - 480V
2 hp
Enclosure NEMA Rating
No Enclosure
Standards
CSA, UL Listed
Auxiliary Contact Form
1NO/1NC
Frame / Series / Class / Code
TeSys
Hz
50/60
Series
TeSys N
Phase
Three
Maximum Voltage Rating
600V AC
Number of Auxillary Contacts
2
Frequency
50/60 Hz
Full Load Current - Inductive
9 A
Horsepower @ Three Phase - 480V AC
2 hp
Horsepower @ Three Phase - 240V AC
1 1/2 hp
NEMA Enclosure Rating
No Enclosure
Terminal Connection Type
Screw Clamp Terminals
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 600V AC
2 hp
Embedded Surge Suppressor
No
Contactor Style
NEMA
Horsepower @ Single Phase - 240V AC
1 hp
Coil Voltage
24V AC
Horsepower @ Three Phase - 208V AC
1 1/2 hp
Horsepower @ Single Phase - 120V AC
1/3 hp
Includes Auxiliary Contacts
Yes
Product Or Component Type
contactor
Poles Description
3P
Nema Degree Of Protection
not rated (open device)
Maximum Horse Power Rating
1.5 hp 200 V AC || 1.5 hp 230 V AC || 2 hp 460 V AC || 2 hp 575 V AC
Rated Current
9 A
Electrical Connection
screw clamp terminals
[Uc] Control Circuit Voltage
24 V AC
Motor Horsepower Rating HP
1.5 hp 200 V AC; 1.5 hp 230 V AC; 2 hp 460 V AC; 2 hp 575 V AC
[Ue] Rated Operational Voltage
600 V AC
Product Certifications
UL Listed || CSA
Line Rated Current
9A
Network Phases
3 phase
Control Circuit
common control circuit
Contactor Application
non-reversing
Auxiliary Contact Composition
1 NO + 1 NC

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 00, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 9 A, Reversing Capability Non-Reversing, Overall Height 3.34 in, Overall Width 1.76 in, Terminal Connection Type Screw Clamp Terminals, Series TeSys N, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 1 1/2 hp, Horsepower @ Three Phase - 480V AC 2 hp, Phase Three
