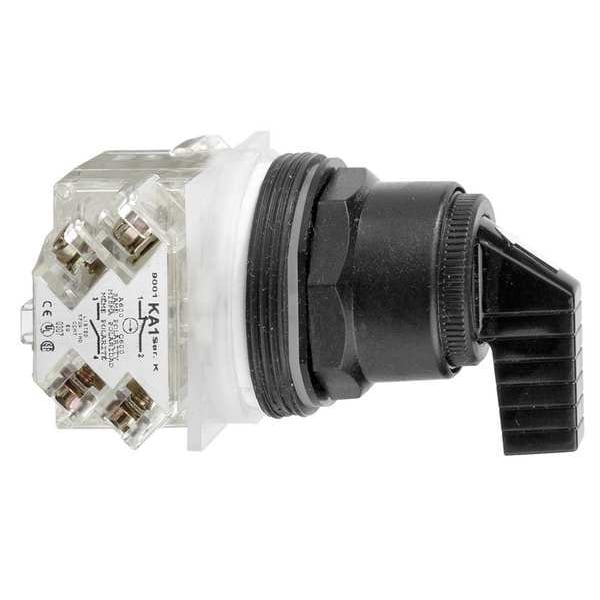

Schneider Electric Non-Illum Select Switch, 30mm, Cam E, IP 65 9001SKS11FBH2 - main

Non-Illum Select Switch, 30mm, Cam E, IP 65

  • Mfr # 9001SKS11FBH2

  • Zoro # G6154531

product price: $157.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Extended Lever
Action
Maintained/Maintained
Contact Form
DPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS11FBH2
Zoro #
G6154531
UPC #
785901043614
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Extended Lever
Action
Maintained/Maintained
Contact Form
DPDT
Operator Head Material
Polycarbonate
Cam
E
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Plastic
Position
2
Key Removal
No Key
Bezel Color
Chrome
Contact Rating
10A @ 600V AC
Switch Operation @ Position C
No Third Position
Switch Operation @ Position B
XOXO
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position A
OXOX
IP Rating
IP66
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position D
No Fourth Position
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series
9001K
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Electrical Shock Protection Class
class II IEC 61140
Product Certifications
CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR || CE
Product Or Component Type
selector switch
Operator Position Information
2 positions
Ambient Air Temperature For Storage
-40-70°C
Device Presentation
complete product
Ip Degree Of Protection
IP66 IEC 60529
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Protective Treatment
TC
Device Short Name
9001SK
Ambient Air Temperature For Operation
-25-70°C
Contacts Type And Composition
2 C/O
Operator Illumination
Non-Illuminated
Switch Function @ 3rd Position
No Third Position
Switch Function @ 1st Position
Off
Contact Block Material
Plastic
Switch Function @ 2nd Position
On
Number of Positions
2
Operator Head Color
Black
Switch Function @ 4th Position
No Fourth Position
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Head Type
Long-Handled Knob
Hazardous Location Specification
Not Rated

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, DPDT Contact Form, Type of Operator Extended Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Plastic, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam E, Switch Operation @ Position A OXOX, Switch Operation @ Position B XOXO
