  11. Non-Illum Selector Switch, 2NO, Plastic, 3P
Shop All Selector Switches
Schneider Electric

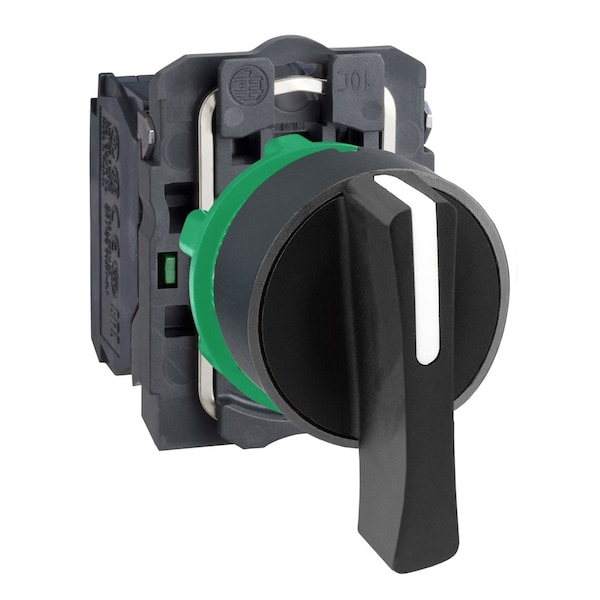

Non-Illum Selector Switch, 2NO, Plastic, 3P

product price: $60.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 22 mm
  • Basic Material Plastic
  • Type of Operator Extended Lever
  • Action Maintained / Maintained / Maintained
  • Contact Form 2NO
See all product information

Product Information

Dimensions

Size 22 mm
Depth 70 mm
Width 30 mm
Height 48 mm
Mounting Diameter 22 mm

Details

Item Non-Illuminated Selector Switch
Basic Material Plastic
Type of Operator Extended Lever
Action Maintained / Maintained / Maintained
Contact Form 2NO
Operator Head Material Polyamide
Cam No Cam
Color Black
NEMA Rating 1, 12, 13, 2, 3, 4, 4X
Position 3
Bezel Material Plastic
Bezel Color Chrome
Key Removal No Key
Switch Operation @ Position A XO
Standards CE Marked, CSA Certified File Number LR44087 Class 321103, UL Listed File Number E164353 CCN NKCR
NEMA Contact Rating Designation B600/Q600
Contact Rating 10A @ 600V AC
Switch Operation @ Position B OO
IP Rating 65
Switch Operation @ Position C OX
Switch Operation @ Position D No Fourth Position
Ip Degree Of Protection IP67 IEC 60529 || IP69 || IP69K
Ambient Air Temperature For Operation -40-70°C
Product Or Component Type selector switch
Ik Degree Of Protection IK06 IEC 50102
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Operator Position Information 3 positions +/- 45°
Connections - Terminals screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Contact Operation slow-break
Device Short Name XB5
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
Terminals Description Iso N°1 (13-14)NO
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Electrical Reliability λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Contacts Usage standard contacts
Shape Of Signaling Unit Head round
Mechanical Durability 1000000 cycles
Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Contacts Material silver alloy (Ag/Ni)
Positive Opening without
Tightening Torque 0.8-1.2 N.m EN 60947-1
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications BV || GL || LROS (Lloyds register of shipping) || UL || DNV || CSA
Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Contacts Type And Composition 2 NO
Operator Profile black long handle
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Electrical Shock Protection Class class II IEC 60536
Head Type standard
Torque Value 0.14 N.m NO changing electrical state
Protective Treatment TH
Ambient Air Temperature For Storage -40-70°C
Nema Degree Of Protection NEMA 13 || NEMA 4X
Device Presentation complete product
Terminals Description Iso N°1 (13-14)NO

Description

Non-Illuminated Selector Switch, 22 mm, 3 Position, Maintained / Maintained / Maintained Action, 2NO Contact Form, Type of Operator Extended Lever, Color Black, No Key Key Removal, Operator Head Material Polyamide, Basic Material Plastic, Bezel Material Plastic, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation B600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 65, Cam No Cam, Switch Operation @ Position A XO, Switch Operation @ Position B OO
