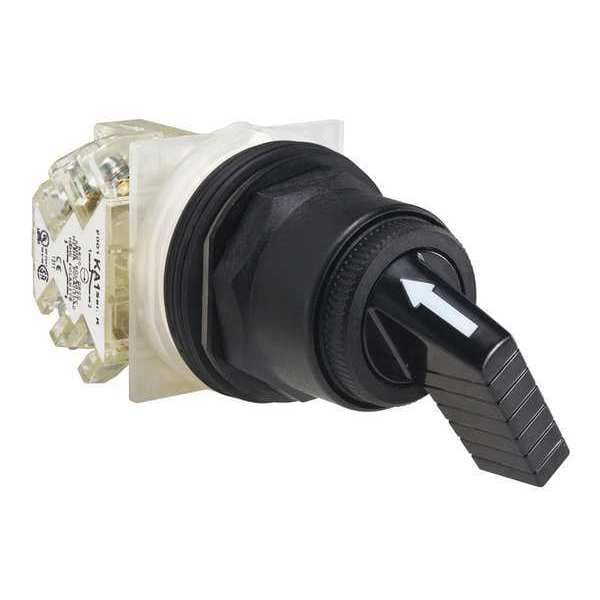

Schneider Electric Non-Illum Selector Switch, Chrome, Ext Lvr 9001SKS11FBH13 - main

Non-Illum Selector Switch, Chrome, Ext Lvr

  • Mfr # 9001SKS11FBH13

  • Zoro # G6514216

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Extended Lever
Contact Form
SPDT
Action
Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS11FBH13
Zoro #
G6514216
UPC #
785901043591
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Extended Lever
Contact Form
SPDT
Action
Maintained/Maintained
Operator Head Material
Polycarbonate
Cam
E
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Plastic
Position
2
Key Removal
No Key
Bezel Color
Chrome
Contact Rating
10A @ 600V AC
Switch Operation @ Position C
No Third Position
IP Rating
IP66
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position B
XO
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position A
OX
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
Harmony 9001K
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Contacts Type And Composition
1 C/O
Protective Treatment
TC
Electrical Shock Protection Class
class II IEC 61140
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
9001SK
Operator Profile
black long handle
Device Presentation
complete product
Operator Position Information
2 positions
Product Certifications
UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
Product Or Component Type
selector switch
Ip Degree Of Protection
IP66 IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Product Compatibility
9001KA1 side 1 or 2
Switch Function @ 2nd Position
On
Contact Block Material
Plastic
Switch Function @ 1st Position
Off
Number of Positions
2
Switch Function @ 3rd Position
No Third Position
Operator Head Type
Long-Handled Knob
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
Operator Head Color
Black
Operator Illumination
Non-Illuminated

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, SPDT Contact Form, Type of Operator Extended Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Plastic, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam E, Switch Operation @ Position A OX, Switch Operation @ Position B XO
