  13. Non-Illum Selector Swtch, 16mm, 2 Pos, Keyd

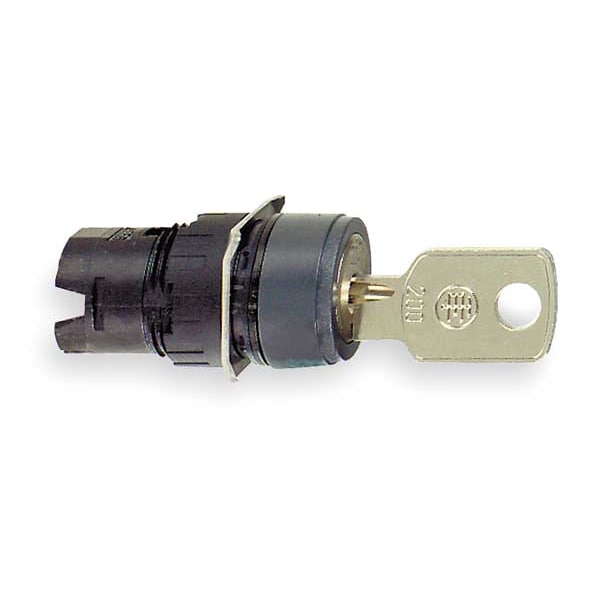

Schneider Electric Non-Illum Selector Swtch, 16mm, 2 Pos, Keyd ZB6AGC - main

Non-Illum Selector Swtch, 16mm, 2 Pos, Keyd

  • Mfr # ZB6AGC

  • Zoro # G1252361

product price: $45.92
/ea

Key Features

Action
Maintained/Maintained
Size
16 mm
Basic Material
Metal
NEMA Rating
13, 4, 4X
Type of Operator
Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB6AGC
Zoro #
G1252361
UPC #
785901360131
Country of Origin
France

Dimensions

Size
16 mm
Mounting Diameter
16 mm
Cad Overall Width
18 mm
Cad Overall Depth
55 mm
Cad Overall Height
18 mm
Panel Cutout Diameter
16 mm
Manufacturer Warranty Length
18 mo

Details

Action
Maintained/Maintained
Basic Material
Metal
NEMA Rating
13, 4, 4X
Type of Operator
Keyed
Cam
No Cam Included
Operator Head Material
Metal
Color
Black
Operator Color
Black
Position
2
Item
Keyed Selector Switch
Bezel Color
Black
Key Removal
Any Position
Bezel Material
Plastic
Switch Operation @ Position D
No Fourth Position
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, JIS C852, UL 508
Key Number
200
Switch Operation @ Position B
XO
Switch Operation @ Position C
No Third Position
IP Rating
IP65
Switch Operation @ Position A
OX
Includes
Key
Series
XB6
Protective Treatment
TC
Key Withdrawal Position
in any position
Ambient Air Temperature For Storage
-40-70°C
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Operator Position Information
2 positions
Type Of Keylock
key 200
Product Certifications
GOST || CCC || UL || CSA
Ip Degree Of Protection
IP65 IEC 60529
Electrical Shock Protection Class
class II IEC 61140
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Product Or Component Type
head for key selector switch
Device Short Name
ZB6
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-25-70°C
Operator Profile
black key switch
Includes Operator Key
Key Included
Key Removal Position
Any Position
Hazardous Location Specification
Not Rated
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Switch Function @ 3rd Position
No Third Position
Switch Function @ 4th Position
No Fourth Position
Operator Head Type
Keyed
Operator Illumination
Non-Illuminated
Number of Positions
2

Description

Keyed Selector Switch, 16 mm, 2 Position, Maintained/Maintained Action, Keyed Type of Operator, Operator Color Black, Key Removal Any Position, Operator Head Material Metal, Bezel Material Plastic, Bezel Color Black, NEMA Rating 13, 4, 4X, IP Rating IP65, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, JIS C852, UL 508, Key Number 200, Includes Key
