  13. Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd

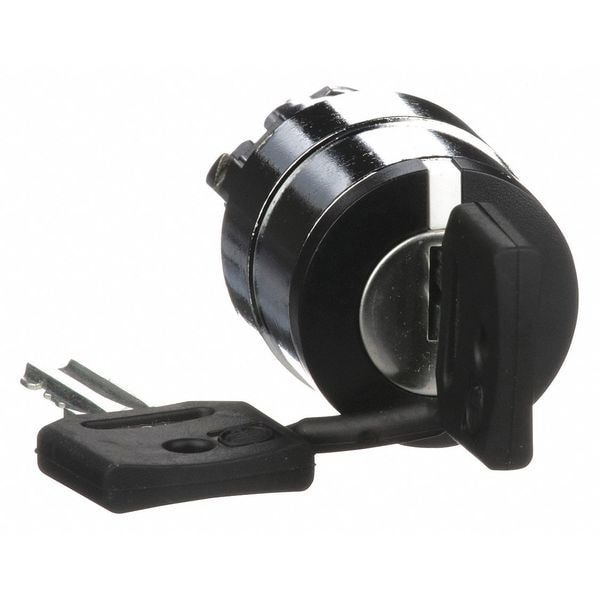

Schneider Electric Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd ZB4BG4 - main

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd

  • Mfr # ZB4BG4

  • Zoro # G0563035

product price: $72.59
/ea

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Keyed
Action
Maintained/Maintained
Operator Head Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BG4
Zoro #
G0563035
UPC #
785901354680
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Depth
72 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Keyed Selector Switch
Basic Material
Metal
Type of Operator
Keyed
Action
Maintained/Maintained
Operator Head Material
Metal
Cam
No Cam Included
Operator Color
Black
Color
Black
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Bezel Material
Chrome Plated Metal
Position
2
Bezel Color
Chrome
Key Removal
Left and Right
Switch Operation @ Position C
No Third Position
IP Rating
IP66, IP67, IP69, IP69K
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508
Includes
Key
Key Number
455
Switch Operation @ Position B
XO
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position A
OX
Series
XB4
Overvoltage Category
class I IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation
-40-70°C
Type Of Keylock
key 455
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Head Type
standard
Product Or Component Type
head for key selector switch
Ik Degree Of Protection
IK06 with keyhole cover ZBGP conforming to IEC 50102
Shape Of Signaling Unit Head
round
Protective Treatment
TH
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Certifications
GL || UL Listed || LROS (Lloyds register of shipping) || CSA || DNV || BV
Key Withdrawal Position
in any position
Operator Position Information
2 positions 90°
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Storage
-40-70°C
Device Presentation
basic element
Operator Profile
black key switch
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Device Short Name
ZB4
Switch Function @ 3rd Position
No Third Position
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operator Illumination
Non-Illuminated
Number of Positions
2
Operator Head Type
Keyed
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
Includes Operator Key
Key Included
Key Removal Position
Any Position

Description

Keyed Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Keyed Type of Operator, Operator Color Black, Key Removal Left and Right, Operator Head Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508, Key Number 455, Includes Key
