  13. Non-Illum Selector Swtch, 22mm, 2 Pos, Levr

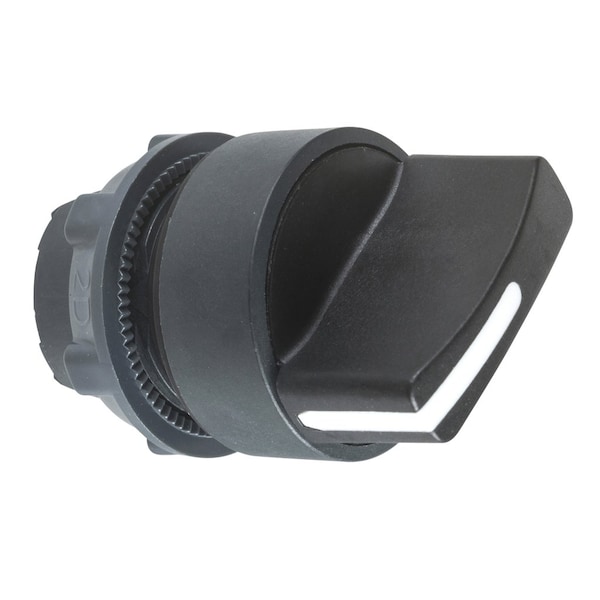

Schneider Electric Non-Illum Selector Swtch, 22mm, 2 Pos, Levr ZB5AD4 - main

Non-Illum Selector Swtch, 22mm, 2 Pos, Levr

  • Mfr # ZB5AD4

  • Zoro # G0898536

product price: $21.49
/ea

Key Features

Size
22 mm
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Momentary
Operator Head Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AD4
Zoro #
G0898536
UPC #
785901373209
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Depth
46 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Short-Handled Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Momentary
Operator Head Material
Plastic
Cam
No Cam Included
Operator Color
Black
Color
Black
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Bezel Material
Plastic
Position
2
Key Removal
No Key
Bezel Color
Black
Switch Operation @ Position A
OX
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position B
XO
Switch Operation @ Position C
No Third Position
IP Rating
IP67, IP69, IP69K
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Key Number
No Key
Series
XB5
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Ambient Air Temperature For Operation
-40-70°C
Device Presentation
basic element
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Head Type
standard
Ip Degree Of Protection
IP67 IEC 60529 || IP69 IEC 60529 || IP69K
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Certifications
BV || DNV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed
Mechanical Durability
1000000 cycles
Protective Treatment
TH
Device Short Name
ZB5
Operator Profile
black standard handle
Overvoltage Category
class II IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection
IK06 IEC 50102
Product Or Component Type
head for selector switch
Operator Position Information
2 positions 90°
Shape Of Signaling Unit Head
round
Operator Head Color
Black
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Illumination
Non-Illuminated
Number of Positions
2
Switch Function @ 4th Position
No Fourth Position
Operator Head Type
Short-Handled Knob
Switch Function @ 3rd Position
No Third Position

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Maintained/Momentary Action, Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key
