Schneider Electric

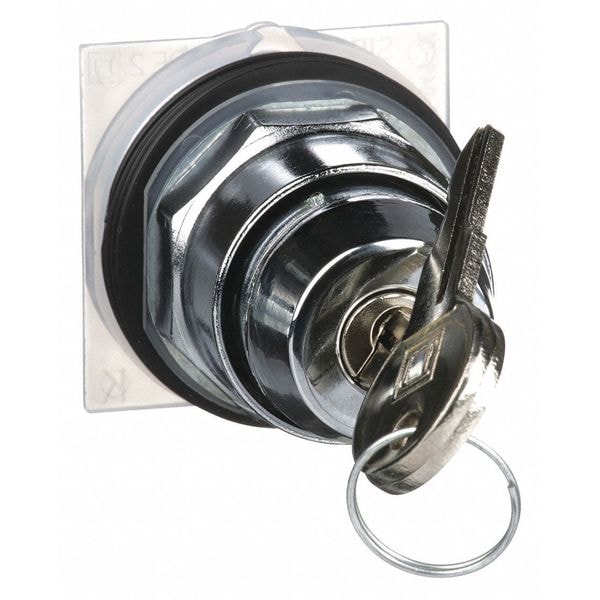

Non-Illum Selector Swtch, 30mm, 2 Pos, Keyd

product price: $105.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 30 mm
  • Basic Material Metal
  • Type of Operator Keyed
  • Action Maintained/Maintained
  • Operator Head Material Metal
See all product information

Product Information

Dimensions

Size 30 mm
Mounting Diameter 30 mm
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 30 mm

Details

Item Keyed Selector Switch
Basic Material Metal
Type of Operator Keyed
Action Maintained/Maintained
Operator Head Material Metal
Cam E
Operator Color Chrome
Color Chrome
NEMA Rating 12, 13, 3, 3R, 4
Bezel Material Metal
Position 2
Key Removal Left
Bezel Color Chrome
Switch Operation @ Position A XO
Switch Operation @ Position B OX
Switch Operation @ Position D No Fourth Position
Includes Key
IP Rating IP66
Switch Operation @ Position C No Third Position
Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508
Key Number E10
Series 9001K
Product Or Component Type head for key selector switch
Operator Profile key switch
Overvoltage Category class II IEC 61140
Ambient Air Temperature For Operation -25-70°C
Shock Resistance 50 gn IEC 60068-2-27
Device Short Name 9001K
Product Certifications UL 508 || NEMA
Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Cam Profile 5
Ambient Air Temperature For Storage -40-70°C
Key Withdrawal Position left
Ip Degree Of Protection IP66 IEC 60529
Protective Treatment TC
Operator Position Information 2 positions
Contacts Type And Composition without contact block
Type Of Keylock E10
Device Presentation basic element
Mechanical Durability 500000 cycles
Product Compatibility 9001KA1 side 1 or 2 || 9001KA2 side 1 or 2
Shape Of Signaling Unit Head octagonal
Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6
Number of Positions 2
Switch Function @ 4th Position No Fourth Position
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4
Key Removal Position Left
Operator Head Color Chrome
Includes Operator Key Key Included
Operator Illumination Non-Illuminated
Switch Function @ 3rd Position No Third Position
Hazardous Location Specification Not Rated
Operator Head Type Keyed

Description

Keyed Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, Keyed Type of Operator, Operator Color Chrome, Key Removal Left, Operator Head Material Metal, Bezel Material Metal, Bezel Color Chrome, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP66, Cam E, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508, Key Number E10, Includes Key
