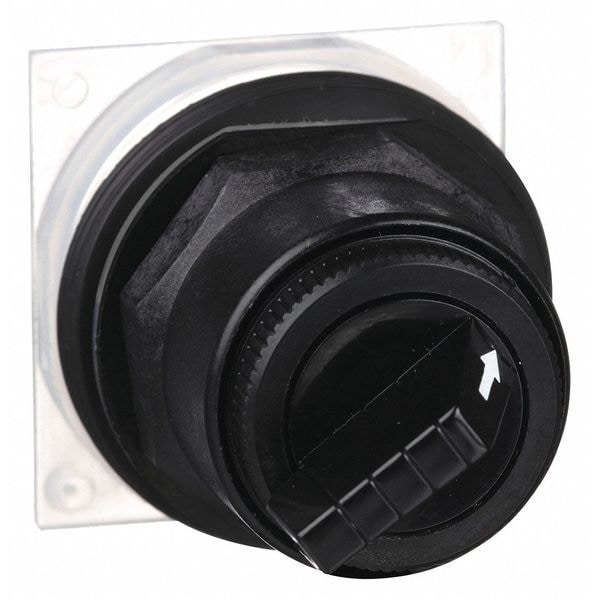

Schneider Electric Non-Illum Selector Swtch, 30mm, 2 Pos, Levr 9001SKS11B - main

Non-Illum Selector Swtch, 30mm, 2 Pos, Levr

  • Mfr # 9001SKS11B

  • Zoro # G0300273

product price: $55.49
/ea

Key Features

Color
Black
Switch Operation @ Position C
No Third Position
Basic Material
Plastic
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Bezel Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS11B
Zoro #
G0300273
UPC #
785901524366
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Short-Handled Selector Switch
Color
Black
Switch Operation @ Position C
No Third Position
Basic Material
Plastic
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Bezel Color
Black
Switch Operation @ Position B
OX
Position
2
Switch Operation @ Position D
No Fourth Position
Operator Head Material
Plastic
Type of Operator
Lever
Operator Color
Black
Action
Maintained/Maintained
Key Number
No Key
NEMA Rating
12, 13, 3, 3R, 4, 4X
Key Removal
No Key
Bezel Material
Plastic
Switch Operation @ Position A
XO
Cam
E
IP Rating
IP66
Number of Positions
2
Product Certifications
UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
Electrical Shock Protection Class
class II IEC 61140
Protective Treatment
TC
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529
Operator Position Information
2 positions
Device Presentation
basic element
Ambient Air Temperature For Operation
-25-70°C
Product Or Component Type
head for selector switch
Contacts Type And Composition
without contact block
Device Short Name
9001SK
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Operator Profile
Standard handle
Cam Profile
5
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 3rd Position
No Third Position
Operator Head Color
Black
Series
9001SK
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Hazardous Location Specification
Not Rated
Operator Head Type
Short-Handled Knob
Operator Illumination
Non-Illuminated

Description

Short-Handled Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam E, Standards CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR, Key Number No Key
