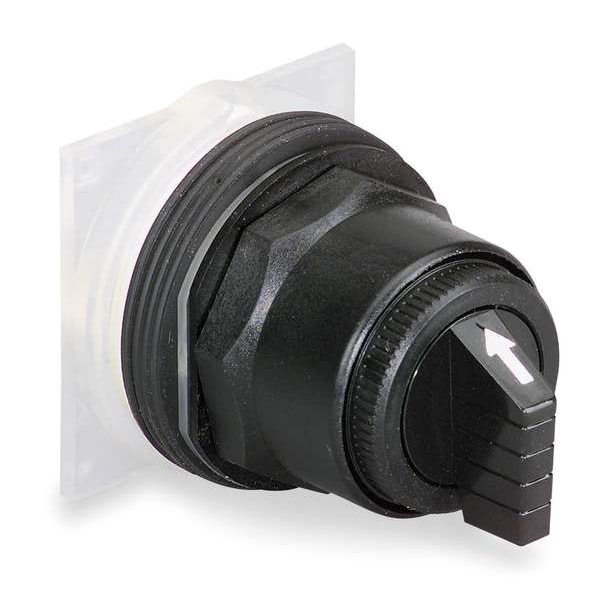

Schneider Electric Non-Illum Selector Swtch, 30mm, 3 Pos, Levr 9001SKS46B - main

Non-Illum Selector Swtch, 30mm, 3 Pos, Levr

  • Mfr # 9001SKS46B

  • Zoro # G1521773

product price: $57.89
/ea

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Operator Head Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS46B
Zoro #
G1521773
UPC #
785901959861
Country of Origin
Mexico

Dimensions

Size
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Short-Handled Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Operator Head Material
Plastic
Cam
F
Operator Color
Black
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Position
3
Bezel Material
Plastic
Bezel Color
Black
Key Removal
No Key
Switch Operation @ Position A
XOOO
Switch Operation @ Position B
OOXO
Switch Operation @ Position D
No Fourth Position
Standards
CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position C
OXOX
IP Rating
IP65
Key Number
No Key
Series
9001SK
Operator Position Information
3 positions
Product Or Component Type
head for selector switch
Enclosure Type
dust and oil resistant weatherproof enclosure indoor/outdoor
Product Certifications
CE || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03
Contacts Type And Composition
without contact block
Cap/Operator Or Lens Colour
black
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Operator Profile
standard handle, 1 projecting push-button
Switch Function @ 4th Position
No Fourth Position
Operator Head Type
Short-Handled Knob
Number of Positions
3
Operator Illumination
Non-Illuminated
Hazardous Location Specification
Not Rated
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Short-Handled Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Cam F, Standards CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR, Key Number No Key
